GN852.1 Latch Clamp, Heavy Duty Type, Steel

CloseNextPrevious



CloseNextPrevious

GN852.1: Latch Clamp - Type: T3S -
for Welding, with U-bolt Latch, with Catch



CloseNextPrevious

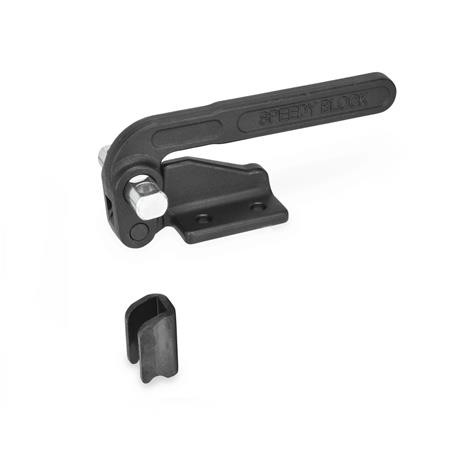

GN852.1: Latch Clamp - Type: T -
Mounting holes, without U-bolt Latch, Catch



CloseNextPrevious

GN852.1: Latch Clamp - Type: T3 -
Mounting Holes, with U-bolt Latch, Catch



CloseNextPrevious

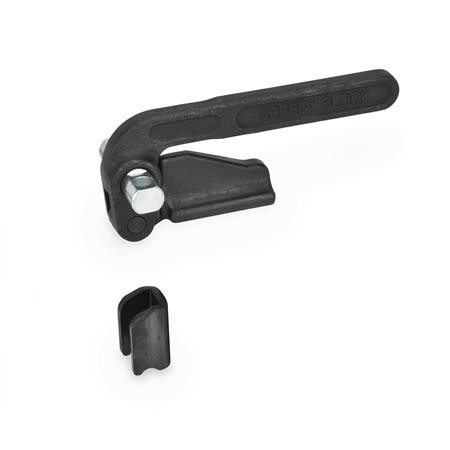

GN852.1: Latch Clamp - Type: TS -
for Welding, without U-bolt Latch, with Catch



CAD Viewer Technical Data

Series Selector

Options

Type T - With fixing holes, without pulling latch, with latch bracket.

Type T3 - With fixing holes, with pulling latch, with latch bracket.

Type TS - For welding, without pulling latch, with latch bracket.

Type T3S - For welding, with pulling latch, with latch bracket.

CAD Viewer Technical Data

Product Description

GN852.1 Latch Clamp, Heavy Duty Type, Steel

The U-bolt latch of the GN 852.1 latch clamp is adjustable within the adjusting range.

Once in the clamping position, the pulling latch is perpendicular to the clamping arm and to the fixing level of the latch clamp.

Next to the standard dimensions of the pulling latches shown above, more design variants are on offer under GN951.2.

Specification

Base / operating handle - Steel ST C22, forged, blackened.

Fixed Catch - Sheet Steel ST, blackened.

U-bolt latch / bearing pins - Steel ST 37, zinc plated, blue passivated.

All moving parts lubricated with special grease.
