GN852 Latch Clamps Heavy Duty Steel plastic high pressure mould forming pulling latch GN 852

Standard Machine Elements > Toggle Clamps, Power & Hook Clamps > Toggle Clamps
< Previous Product Next Product >

GN852 Latch Clamp, Forged Steel, Blackened, Heavy Duty, Steel



 images/300/GN852-Latch-type-toggle-clamps-heavy-duty-type-sketch_H.png



Type T2 - With fixing holes, with U bolt latch, with catch.

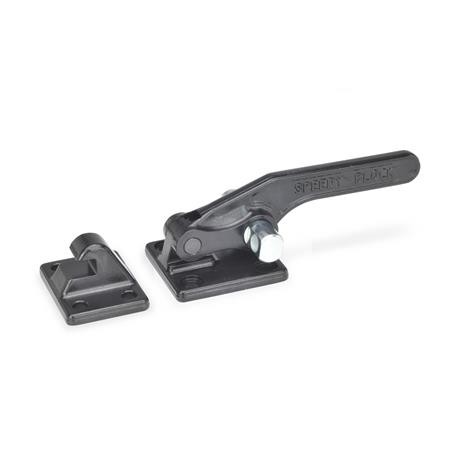

Type T - With fixing holes, without U bolt latch, with catch.

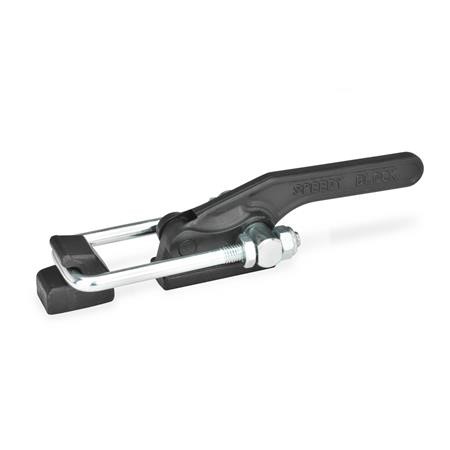

Type T2S - For welding, with U bolt latch, with catch.

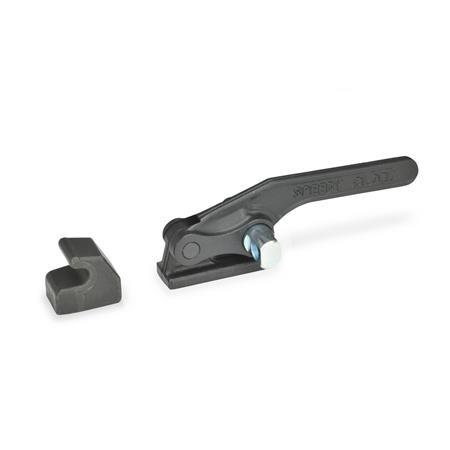

Type TS - For welding, without U bolt latch, with catch.

Select Values to Buy:

Tech Spec:



GN 852 Latch Clamp, Forged Steel, Blackened, Heavy Duty, Steel

These heavy duty latch clamps, GN852, are used for very high holding forces as may be encountered in the field of plastic high pressure mould forming.

The stroke of the pulling latch can be adjusted within its range.

In addition to the standard lengths of the U bolt latches shown, a variety of other lengths are also available under the GN951.2 series.

Specification

Body / catch / clamping lever - Steel C22, forged. Black lacquered (Type T/T2). Blackened (Type TS/T2S).

U-bolt latch / bearing pin - Steel St.37, zinc plated, blue passivated.

All moving parts lubricated with special grease

RoHS compliant

Select / Deselect Visible Columns
PartCodeSizeTypeMaterialFH in N
Holding
Capacity
a1a2b1b2b3b4b5b6b7d1d2d3h1h2l1l2l3m1m2m3m4m5rs1s2tw1w2Mass

GN852-2800-T22800T2ST40000282785805560803250M1210.5166542.526532.115157145712.535117912.7278152
GN852-2800-T2800TST40000282785805560803250M1210.5166542.526532.115157145712.535117912.7278151.7
GN852-2800-T2S2800T2SST40000282785805560803250M1210.5166542.526532.115157145712.535117912.7278151.5
GN852-2800-TS2800TSST40000282785805560803250M1210.5166542.526532.115157145712.535117912.7278151.433
GN852-1700-T0.954
GN852-1700-T21.08
GN852-1700-T2S0.9
GN852-1700-TS0.225
