GN151
Hinge, Black Plastic, Clean Design, Heat Resistant
Please select desired options to reveal part number, price and availability
Options
Type A - 2x2 threaded blind bores.

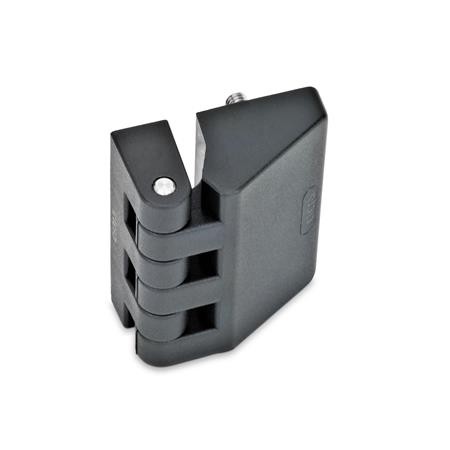

Type B -

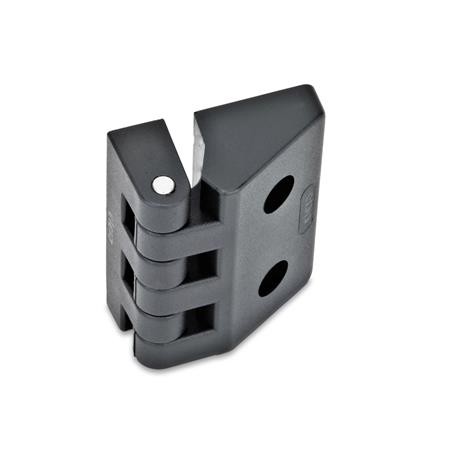

Type C - 2x threaded blind bores / 2x bores for socket cap screws

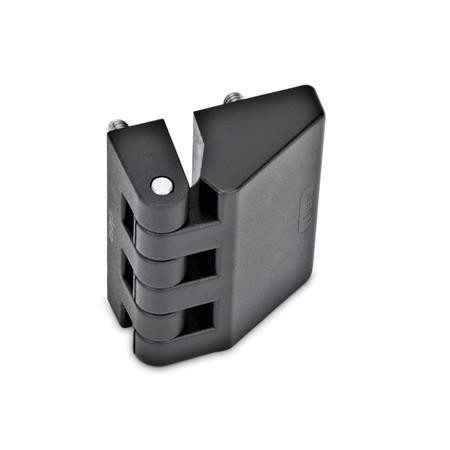

Type D - 2x2 threaded studs.

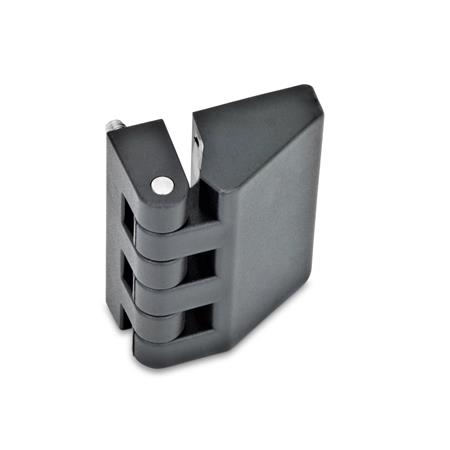

Type E - 2x threaded studs / 2x threaded blind bores

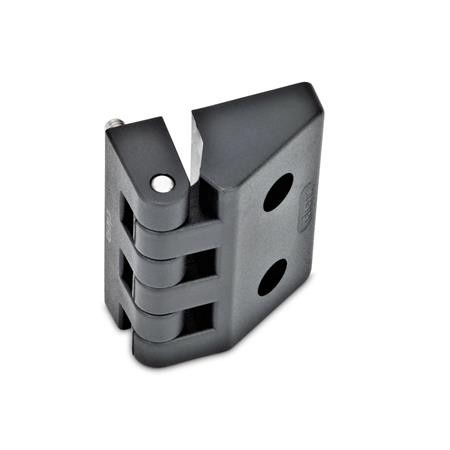

Type F - 2x threaded studs / 2x bores for countersunk screws.
Product Description
GN154 Hinge, Black Plastic,
These hinges, GN 154, consist of two different wings of unequal length. They are designed for use when thick walled doors or door profiles have to be screwed on to thin walled housings.
Specification
Plastic (Polyamide PA), black, matt, temperature resistant up to 80°C.
Pin - Stainless Steel AISI 303
Threaded bushings - Brass, nickel plated
Threaded studs - Brass, nickel plated
