GN237.1 Hinge, Reinforced Plastic, Temperature Resistant

CloseNextPrevious



CloseNextPrevious

GN237.1: Hinge
Type: A



CloseNextPrevious

GN237.1: Hinge
Type: B



CloseNextPrevious

GN237.1: Hinge
Type: C



CloseNextPrevious

GN237.1: Hinge
Type: D



CloseNextPrevious

GN237.1: Hinge
Type: E



CAD Viewer Technical Data

Series Selector

Options

Form A - 2x2 bores for countersunk screws.

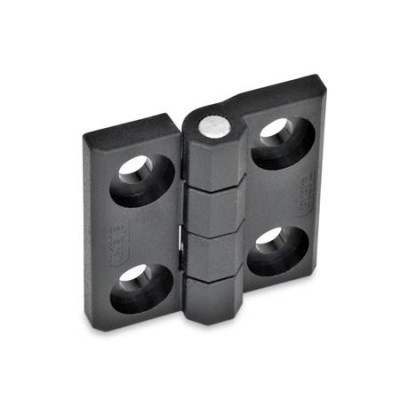

Form B - 2x2 bores for socket head cap screws.

Form C - 2x2 threaded studs.

Form D - 2x bores f. countersunk screws/2x threaded studs.

Form E - 2x bores f. socket head cap screws/2x threaded studs.

CAD Viewer Technical Data

Product Description

GN237.1 Hinge, Reinforced Plastic, Temperature Resistant

These heat resistant plastic hinges are both robust and cost effective and are excellent value for money. Easy to attach with five different mounting options. With a wide rotation angle they for ideal for cupboards, doors, hatches & covers.

Specification

Plastic (Polyamide PA), glass fibre reinforced, temperature resistant up to 140C, black, matt.

Pin - Stainless Steel NI, AISI 303

Threaded studs - Steel ST, nickel plated.
