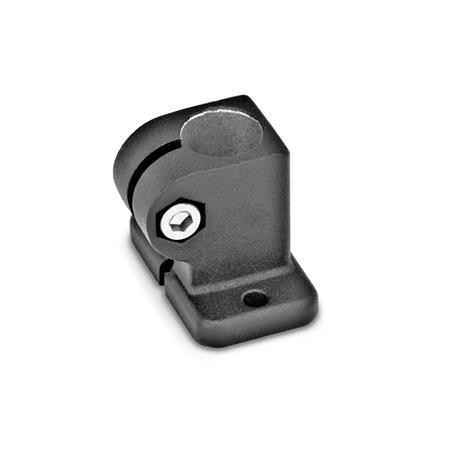

GN162.3 Base Plate Connector Clamp, Aluminium, 2 Mounting Holes
Identification number 2 - with clamping screw DIN912, stainless steel
Finish SW - Black, textured finish
Finish BL - Blank
Overview of Assembly Set GN965 for Profile Systems.pdf
Overview of Assembly Set GN968 For Profile Systems.pdf
Catalogue Technical Specification
2D/3D Cad Files
GN 162.3 Base Plate Connector Clamp, Aluminium, with 2 Mounting Holes
The clamping bores of the base plate connector clamps GN162.3 are mechanically machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.
The standard clamping screws are hexagonal socket cap screws DIN912. They can be used in place of adjustable clamping levers GN911.
Base plate connector clamps GN162.3 can also be used for mounting to linking aluminium extrusions and profile systems.
Aluminium, plastic coated, matt shot-blasted. SW - Black, textured finish. BL - Blank.
Clamping bores mechanically machined.
Hexagon screws ISO 4017 Stainless Steel AISI 304
Hexagon nuts DIN 985 Stainless Steel AISI 304
Adjustable clamping levers GN911 zinc die casting.
