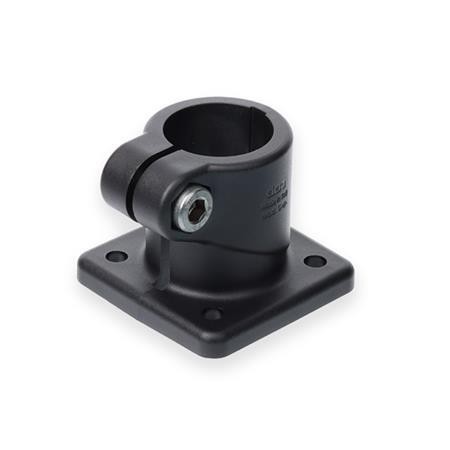

GN163.9 Base Plate Connector Clamp, Plastic

The clamping bore axis of the base plate connector clamps GN 163.9 is perpendicular to the surface of the flange. It holds typical construction tubes with full surface contact over the entire cross-section of the bore.

At the screw location z, the socket cap screw reduces the bore cross-section for clamping. Adapter bushings GN 290 can be used to reduce the bore cross-sections to a smaller diameter.

For clamping without tools, the socket cap screw can be replaced by one of the adjustable hand levers GN 911.9 listed in the table as accessories.

The plastic used in version VDB is made from blue, visually detectable and FDA-compliant plastic granulate as per FDA CFR.21 and EU 10/2011.

Specification

• Plastic, Technopolymer (Polyamide PA) - glass fibre reinforced, temperature resistant up to 100º C, matte finish
  • Black, RAL 9005, SW
  • Grey, RAL 7040, GR
  • Blue, RAL 5005, VDB, FDA compliant plastic granulate, visually detectable
• Socket cap screw DIN912 - stainless steel AISI 304
• Hex nut DIN985 - stainless steel AISI 304, self locking with polyamide ring
