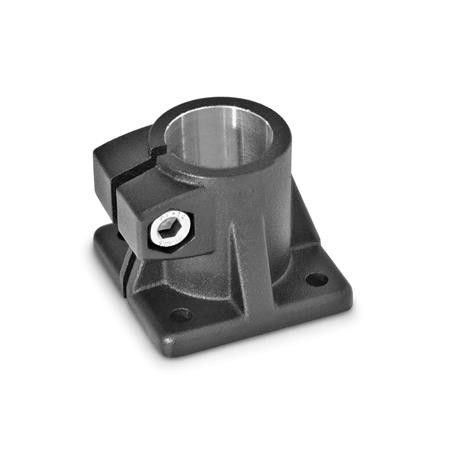

GN163 Base Plate Connector Clamp, Aluminium

images/300/GN163-Base-plate-connector-clamps-Aluminium-sketch__1__H.png



Identification no. 2 - with one clamping screw DIN912 stainless steel



Select Values to Buy:

Tech Spec:



GN 163 Base Plate Connector Clamp, Aluminium

The clamping bores of these base plate connector clamps GN163 are mechanically machined and are designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.

The standard clamping screws are socket cap screws DIN912. They can be replaced with adjustable clamping levers GN911

Specification

Aluminium - plastic coated, black, RAL 9005, textured finish SW. Blank, matt shot-blasted, BL

Clamping bores - mechanically machined

Socket cap screws DIN912 -  stainless steel AISI 304

Hexagon nuts DIN985 - stainless steel AISI 304

Adjustable clamping lever GN911

RoHS compliant
