GN166 Off-Set Base Plate Connector Clamp, Aluminium

Close Next Previous

Close Next Previous

GN166 Offset Base Plate Connector Clamps, Aluminium
Bore B Finish BL

Close Next Previous

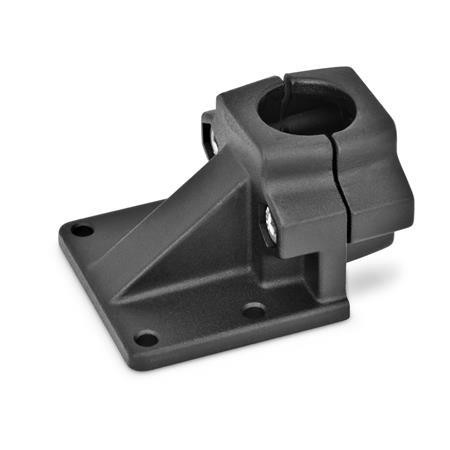

GN166 Offset Base Plate Connector Clamps, Aluminium
Bore B Finish SW

Close Next Previous

GN166 Offset Base Plate Connector Clamps, Aluminium
Square V Finish BL

Close Next Previous

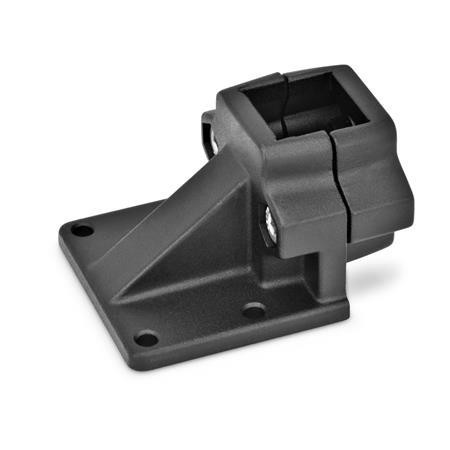

GN166 Offset Base Plate Connector Clamps, Aluminium
Square V Finish SW

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Identification No. 2 with 2 clamping screws DIN912, stainless stee

Code B - Bore

Code V - Square

Product details

GN166 Off-Set Base Plate Connector Clamps, Aluminium, Split Assembly

The clamping bores of these off-set base plate connector clamps, GN 166, are not machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.

The square versions are also suitable for profile systems.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN911 listed in the table as accessories.

Specification

Aluminium, powder coated, black, RAL 9005, textured finish SW. Blank, matt shot-blasted BL.
Socket cap screws DIN912, Stainless Steel AISI 304
Hexagon nuts DIN985, Stainless steel AISI 304, self locking via polyamide ring

Accessory

Adjustable hand lever GN911.
Construction tube GN990

Related Series

GN165
Base Plate Connector Clamp Split Assembly Aluminium

GN167-Wide-base-plate-connector-clamps-Aluminum-BL-Plain-finish-matte-shot-plasted-Bore.jpg

GN167
Wide Base Plate Connector Clamp, Split Assembly Aluminium

GN163
Base Plate Connector Clamp, Aluminium

GN990
Construction Tube, Aluminium Tube Clamp Connectors

GN990
Construction Tube Stainless, for Tube Clamp Connectors

GN991
Tube End Plug, Plastic, for Construction Tubes GN990

GN171-Flanged-base-plate-connector-clamps-Aluminum-Bore-BL-Plain-finish-matte-shot-plasted.jpg

GN171
Base Plate Flanged Connector Clamp, Split Assembly Aluminium
