GN187.4 Serrated locking plates standard components stainless clamping elements

Standard Machine Elements > Screws, Nuts, Washers Clamping & Supporting Elements > 3.2 Washers
< Previous Product Next Product >

GN187.4 Serrated Locking Plate, Stainless Steel

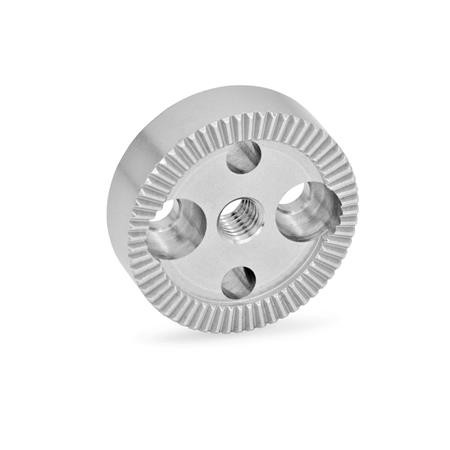

Type A - with tapped hole d3 in the center, with two countersunk holes for cap screws

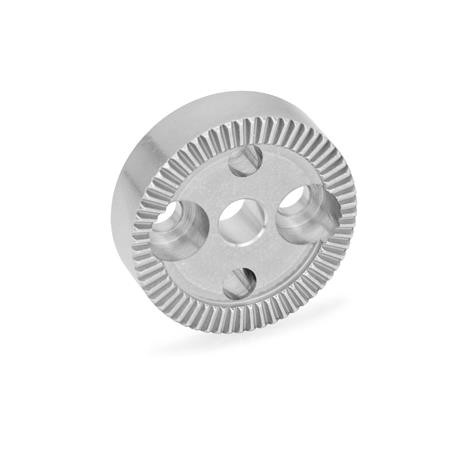

Type B - with drilling d4 in the center, with two countersunk holes for cap screws

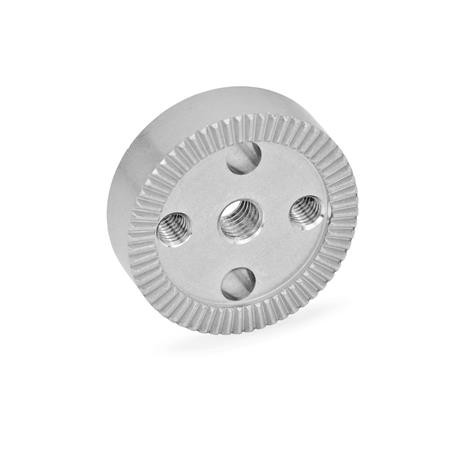

Type C - with tapped hole d3 in the center, with two tapped mounting holes d6

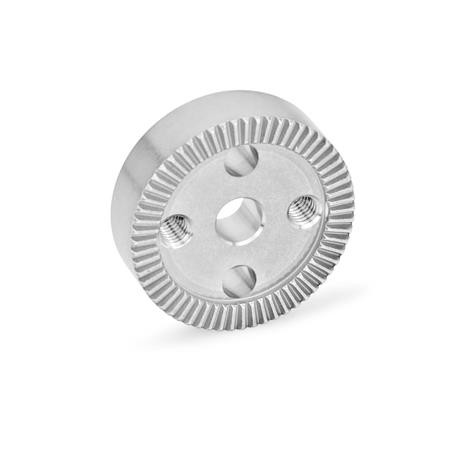

Type D - with drilling d4 in the center, with two tapped mounting holes d6

Type E - without drillings, blank, not hardened

Select Values to Buy:

Tech Spec:



GN187.4 Serrated Locking Plate

With the aid of these serrated locking plates, standard components can be interlocked and set firmly at a defined angle.

The range of designs makes these plates adaptable for almost any application in this particular field.

To complement these toothed clamping elements, accessories such as guide pots GN187.1 and thrust springs GN187.2 are useful additional standard parts.

Specification

Stainless Steel (Sintered Steel) NI , AISI 316L

RoHS compliant



Select / Deselect Visible Columns
PartCoded1Number
of teeth
TypeMateriald2d3d4d5d6d7h1h2m1m2wMass

GN187.4-22-48-A-NI2248ANI15.5M44.23.2M336.51312120.60.012
GN187.4-22-48-B-NI2248BNI15.5M44.23.2M336.51312120.60.02
GN187.4-22-48-C-NI2248CNI15.5M44.23.2M336.51312120.60.02
GN187.4-22-48-D-NI2248DNI15.5M44.23.2M336.51312120.60.011
GN187.4-22-48-E-NI2248ENI15.5M44.23.2M336.51312120.60.015
GN187.4-22-60-A-NI2260ANI15.5M44.23.2M336.51312120.60.015
GN187.4-22-60-B-NI2260BNI15.5M44.23.2M336.51312120.60.016
GN187.4-22-60-C-NI2260CNI15.5M44.23.2M336.51312120.60.016
GN187.4-22-60-D-NI2260DNI15.5M44.23.2M336.51312120.60.016
GN187.4-22-60-E-NI2260ENI15.5M44.23.2M336.51312120.60.016
GN187.4-27-48-A-NI2748ANI19.5M55.24.3M447.51515150.70.02
GN187.4-27-48-B-NI2748BNI19.5M55.24.3M447.51515150.70.02
GN187.4-27-48-C-NI2748CNI19.5M55.24.3M447.51515150.70.024
GN187.4-27-48-D-NI2748DNI19.5M55.24.3M447.51515150.70.024
GN187.4-27-48-E-NI2748ENI19.5M55.24.3M447.51515150.70.027
GN187.4-27-60-A-NI2760ANI19.5M55.24.3M447.51515150.70.024
GN187.4-27-60-B-NI2760BNI19.5M55.24.3M447.51515150.70.024
GN187.4-27-60-C-NI2760CNI19.5M55.24.3M447.51515150.70.02
GN187.4-27-60-D-NI2760DNI19.5M55.24.3M447.51515150.70.02
GN187.4-27-60-E-NI2760ENI19.5M55.24.3M447.51515150.70.026
GN187.4-32-48-A-NI3248ANI23.5M66.25.3M5591818180.90.035
GN187.4-32-48-B-NI3248BNI23.5M66.25.3M5591818180.90.035
GN187.4-32-48-C-NI3248CNI23.5M66.25.3M5591818180.90.039
GN187.4-32-48-D-NI3248DNI23.5M66.25.3M5591818180.90.039
GN187.4-32-48-E-NI3248ENI23.5M66.25.3M5591818180.90.045
GN187.4-32-60-A-NI3260ANI23.5M66.25.3M5591818180.90.041
GN187.4-32-60-B-NI3260BNI23.5M66.25.3M5591818180.90.041
GN187.4-32-60-C-NI3260CNI23.5M66.25.3M5591818180.90.044
GN187.4-32-60-D-NI3260DNI23.5M66.25.3M5591818180.90.044
GN187.4-32-60-E-NI3260ENI23.5M66.25.3M5591818180.90.045
GN187.4-40-48-A-NI4048ANI30M88.26.3M6611.52323231.30.1
GN187.4-40-48-B-NI4048BNI30M88.26.3M6611.52323231.30.071
GN187.4-40-48-C-NI4048CNI30M88.26.3M6611.52323231.30.078
GN187.4-40-48-D-NI4048DNI30M88.26.3M6611.52323231.30.077
GN187.4-40-48-E-NI4048ENI30M88.26.3M6611.52323231.30.088
GN187.4-40-60-A-NI4060ANI30M88.26.3M6611.52323231.30.084
GN187.4-40-60-B-NI4060BNI30M88.26.3M6611.52323231.30.08
GN187.4-40-60-C-NI4060CNI30M88.26.3M6611.52323231.30.08
GN187.4-40-60-D-NI4060DNI30M88.26.3M6611.52323231.30.08
GN187.4-40-60-E-NI4060ENI30M88.26.3M6611.52323231.30.086
