GN212.3 Adjustable Tension Levers Female Steel threaded duroplast cylindrical knob

Standard Parts for Clamping & Operating & Machine Fixtures > Adjustable Hand Levers, Clamping Levers & Tension Levers > Adjustable Handle Levers, Tension Levers
< Previous Product Next Product >

GN212.3 Adjustable Tension Lever, Female, Steel

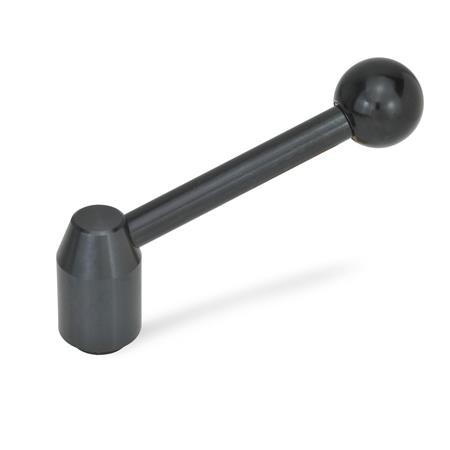

Type E - angled lever

Type D - straight lever

Select Values to Buy:

Tech Spec:



GN212.3 Adjustable Tension Lever, Female, Steel

These adjustable tension levers are ideal whenever parts have to be clamped in a confined space or a particular lever position. The threaded insert is connected with the hub via serrations which can be disengaged. Pulling the lever disengages the serrations and allows it to be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.

Specification

Steel - blackened

Ball knobs DIN319, Plastic, Duroplast, black, shiny finish

RoHS compliant



Select / Deselect Visible Columns
PartCoded1d2Typed3d4d5h1h2h3h4
Type E
h4
Type D
h5l2
Type E
l2
Type D
l3tMaterialMass

GN212.3-21-M6-E21M6E13.582033.5~159~475~7011ST0.097
GN212.3-21-M6-D21M6D13.5820~311~364~80.57011ST0.097
GN212.3-21-M8-E21M8E13.582033.5~159~475~7011ST0.095
GN212.3-21-M8-D21M8D13.5820~311~364~80.57011ST0.093
GN212.3-24-M8-E24M8E16102540~2.575~4.5101~9614ST0.159
GN212.3-24-M8-D24M8D161025~372.5~43.54.5~1089614ST0.161
GN212.3-24-M10-E24M10E16102540~2.575~4.5101~9614ST0.15
GN212.3-24-M10-D24M10D161025~372.5~43.54.5~1089614ST0.157
GN212.3-28-M10-E28M10E19123048.5~4.589~4.5116~11017ST0.245
GN212.3-28-M10-D28M10D191230~44.54.5~52.54.5~12411017ST0.24
GN212.3-28-M12-E28M12E19123048.5~4.589~4.5116~11017ST0.261
GN212.3-28-M12-D28M12D191230~44.54.5~52.54.5~12411017ST0.258
GN212.3-33-M12-E33M12E23123255~6100.5~5.5131.5~12422ST0.35
GN212.3-33-M12-D33M12D231232~51.56~605.5~140.512422ST0.381
GN212.3-33-M14-E33M14E23123255~6100.5~5.5131.5~12422ST0.381
GN212.3-33-M14-D33M14D231232~51.56~605.5~140.512422ST0.373
GN212.3-33-M16-E33M16E23123255~6100.5~5.5131.5~12422ST0.35
GN212.3-33-M16-D33M16D231232~51.56~605.5~140.512422ST0.364
GN212.3-40-M16-E40M16E28143568~6118~5.5148~13836ST0.6
GN212.3-40-M16-D40M16D281435~646~71.55.5~15813836ST0.638
GN212.3-40-M20-E40M20E28143568~6118~5.5148~13836ST0.6
GN212.3-40-M20-D40M20D281435~646~71.55.5~15813836ST0.608
GN212.3-24-3/8X16-D0.157
GN212.3-24-3/8X16-E0.155
GN212.3-24-5/16X18-E0.155
GN212.3-28-1/2X13-E0.261
GN212.3-28-3/8X16-E0.267
GN212.3-28-M14-E0.26
GN212.3-33-1/2X13-E0.381
GN212.3-33-5/8X11-E0.372
GN212.3-21-1/4X20-D0.095
GN212.3-21-1/4X20-E0.095
GN212.3-21-5/16X18-D0.097
GN212.3-21-5/16X18-E0.097
#29102.49~29106.46#



Adjustable tension levers with cylindrical knobs (instead of ball knobs) also available, GN212.4.
