GN2277
Bull's Eye Level, Mounting Flange, Aluminium
Please select desired options to reveal part number, price and availability
Options
Sensitivity - 10 Angle minutes, bubble moves by 2mm (only version ALS).
Sensitivity - 40 Angle minutes, bubble moves by 2mm (only version KT).

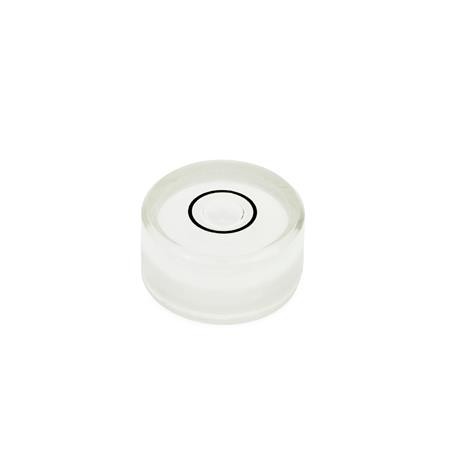

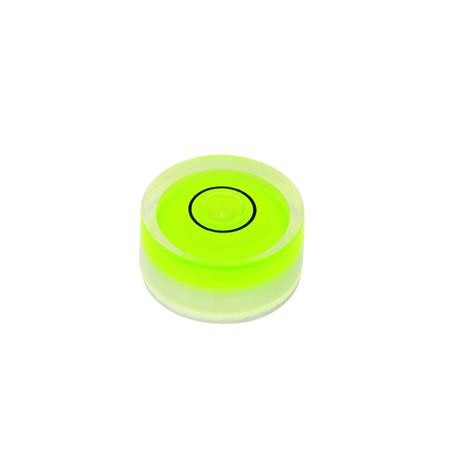

Identification number - 1 without contrast ring.

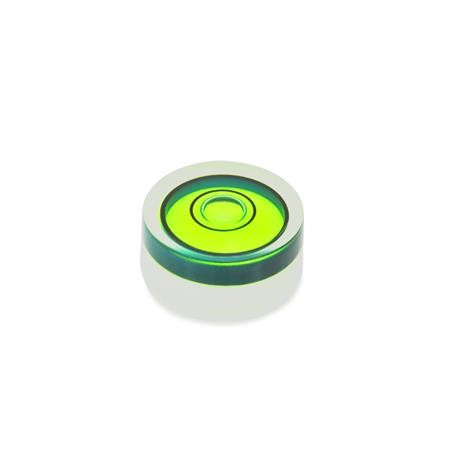

Identification number - 2 with contrast ring (only version KT for d=12 - 18)
Product Description
GN2281 Bull's Eye Level for installation in Plates and Housings.
Due to their cylindrical design, these GN 2281 bull’s eye spirit levels are suitable for installation in plates and housings, where they are used to check the horizontal position of jigs, machines and devices.
The black housing of the ALS version creates a reflection at the edge of the bubble, significantly improving the readability. The KT version is available with a contrast ring inside the air-level housing (Identification number 2), which creates the same effect. Alternatively, the contrast can be improved by using a dark surface inside the mounting bore hole.
These bull’s eye levels are not aligned, i.e. there is no reference to the external outline of the level. The vertical position must be ensured by aligning the holding building element.
Specification
On Request
Other sensitivities.
