GN239.6 Plastic Hinges, Safety Switch, Connector Plug

 images/300/GN239.6-Hinges-with-safety-switch-with-connector-plug-drawing_H.png

Type AS - Connector plug at the top

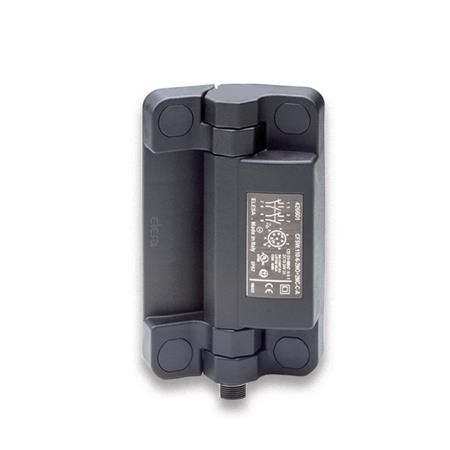

Type BS - Connector plug from the bottom

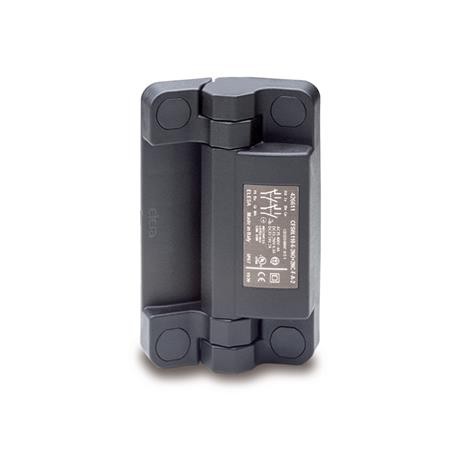

Type CS - Connector plug at the back

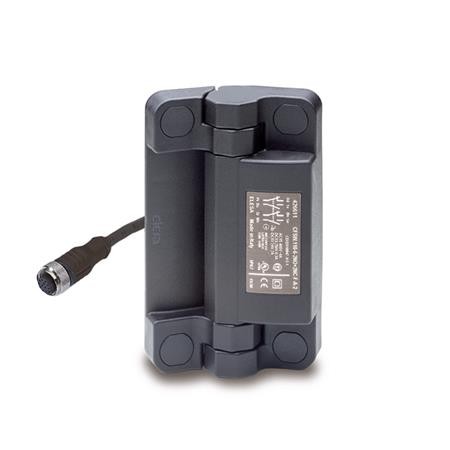

Type CSK - Connector plug at the back (with 0,2 m cable)

Id no. 1 - Contact block with 2NC / 2NO

Id no. 2 - Contact block with 3NC / 1NO

Select Values to Buy:

Tech Spec:



GN239.6 Plastic Hinges, Safety Switch, Connector Plug

Hinges GN 239.6 with integrated safety switches have been designed for monitoring doors and covers of machines and plants. Opening the door will activate the switch contacts which, in turn, will then interrupt a protective circuit via a break contact (NC) and at the same time signal the door opening by closing a make contact element (NO).

The contact blocks are fitted with force-opening slow-action contacts, i.e. they will definitely be separated when activated and have no hysteresis. The angle at which the switching points are reached are adjustable (see contact travel diagram).

Together with the integrated contact blocks, the hinges are a compact, tamper-proof and easy to mount unit.

Operating instructions showing more important technical information are included with every hinge.

Specification

Housing, pin and mounting bushings - Plastic (Polyamide PA), glass fibre reinforced, black, matt, temperature resistant up to 80 °C

Accessories

Cable with connector coupling, 8-pole, 5 or 10 meter long: GN330-M12x1-8-G-5 & GN330-M12x1-8-G-10

Available On Request. Hinges with operation angle > 0°. Hinges with other contact block.

RoHS Compliant

Select / Deselect Visible Columns
PartCodel1l2Id No Typeh1h2h3m1m2MaterialMass

GN239.6-60-110-1-AS601101AS2515124291KT0.15
GN239.6-60-110-2-AS601102AS2515124291KT0.15
GN239.6-60-110-1-BS601101BS2515124291KT0.15
GN239.6-60-110-2-BS601102BS2515124291KT0.15
GN239.6-60-110-1-CS601101CS2515124291KT0.15
GN239.6-60-110-2-CS601102CS2515124291KT0.2
GN239.6-60-110-1-CSK601101CSK2515124291KT0.28
GN239.6-60-110-2-CSK601102CSK2515124291KT0.28
