Please select desired options to reveal part number, price and availability
Options

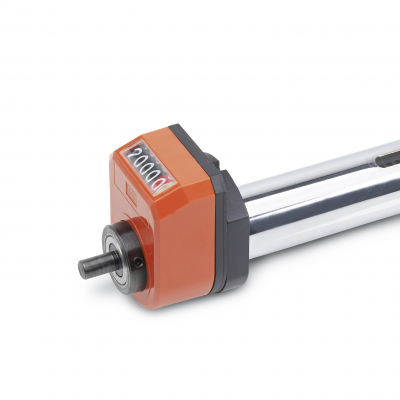

Id Number 1 - For mechanical position indicators GN953, GN954 & GN955

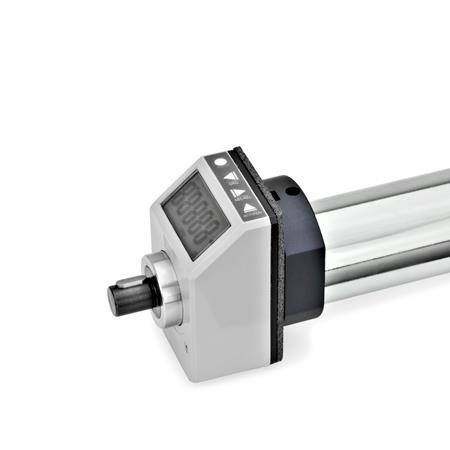

Id Number 2 - For electronic position indicators GN9053 & GN9054
Product Description
GN295 Installation Kit, for Position Indicators

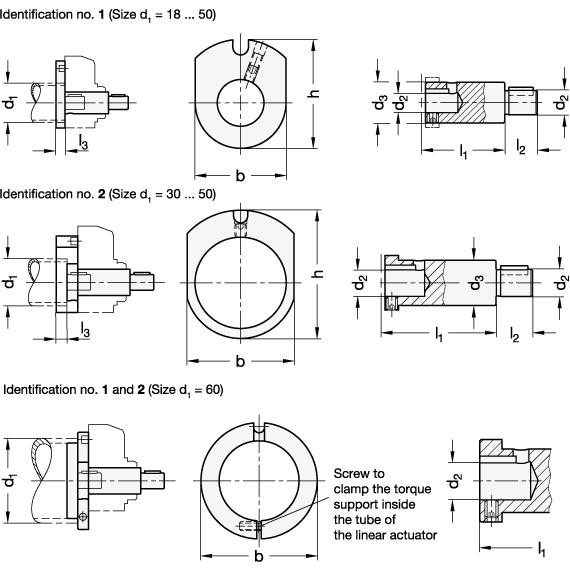

Installation kits GN 295 are used for mounting a position indicator on linear units. The installation kits comprise an adapter shaft and a torque support including attachment screws.
Retrofitting is possible. Remove the wheel, mount the kit and put the wheel back in place.
Order mechanical position indicators with a counter pitch that corresponds to that of the trapezoidal threaded spindle.
Specification
Adapter Shaft - Steel ST, blackened
Torque support - Aluminium AL, black anodized
Accessory
Position indicators and handwheels have to be ordered separately.
On Request
Linear actuators with analogue position indicator GN000.8 available
