GN322 Spoked Handwheel, Aluminium, with Recessed Grips

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

B - without keyway + Bore-

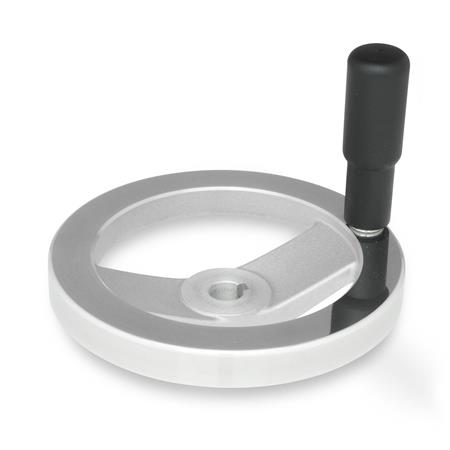

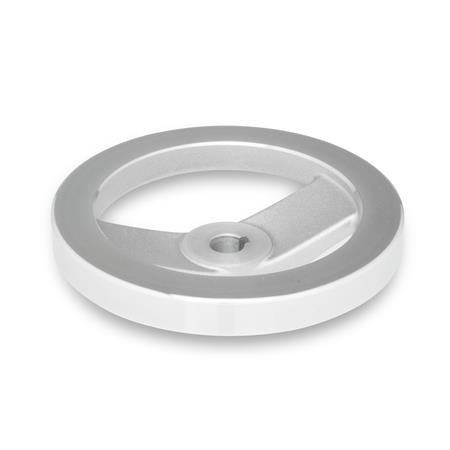

K - with keyway + Bore-

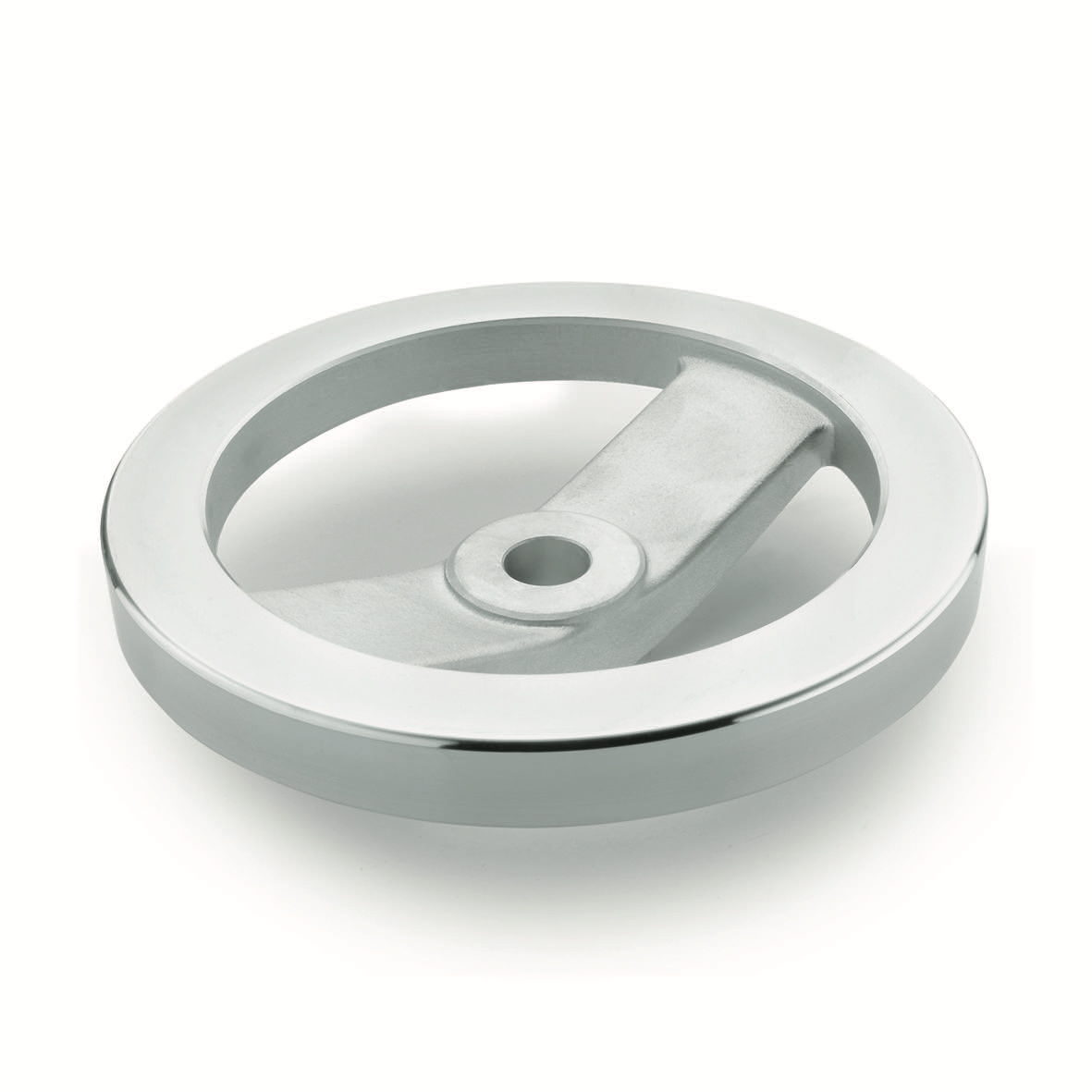

Type A - without handle

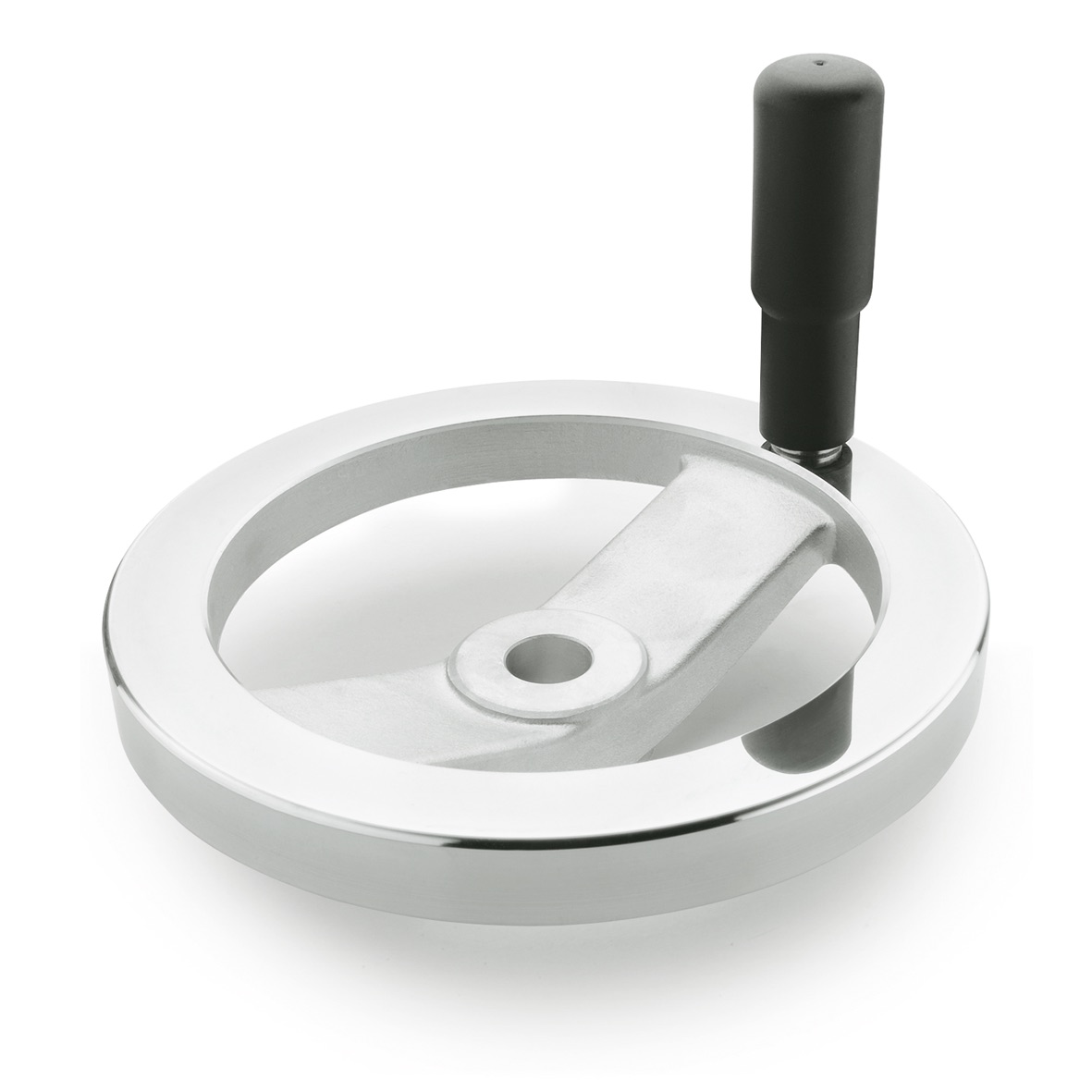

Type R - with revolving handle GN798

CAD Viewer Technical Data

Product description

GN 322 Spoked Handwheel, Aluminium, with Recessed Grips

These handwheels have a modern, attractive design. They can be supplied with or without revolving handles and have recesses at the back of the handwheel for a safe, secure grip. The highly polished rim and shot blasted body does not require painting or other treatments, for most applications. An alternative option with the same dimensions is GN324

Specification

Aluminium.

Hub - machined.

Rim - turned and high-polished

Body - unmachined, matt shot-blasted

Rim concentric and square to bore.
