GN409.2 Positioning Element, with Female Thread, Steel



Type B - Smooth contact face

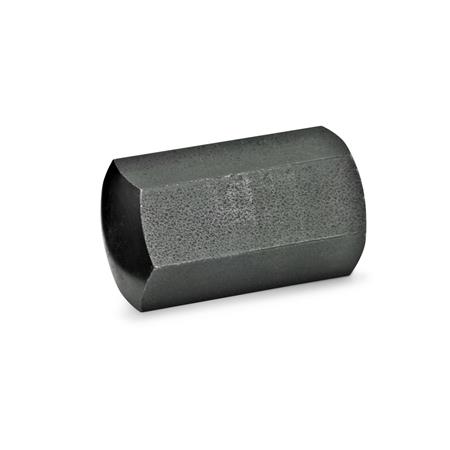

Type K - Spherical contact face

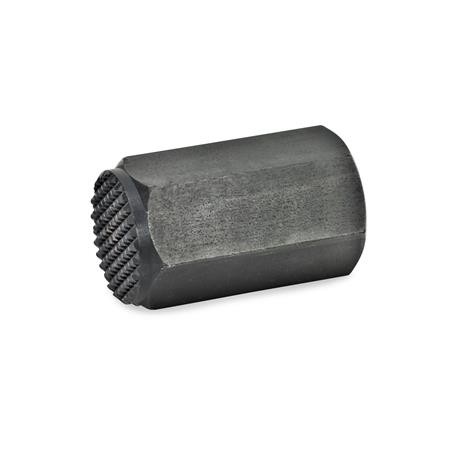

Type R - Serrated contact face

Select Values to Buy:

Tech Spec:



GN 409.2 Positioning Element, with Female Thread, Steel

These positioning elements GN409.2, with female thread, are designed for use as locating plungers, stops and thrust blocks.

Also available are positioning elements GN409.1 (with male thread)

Specification

Steel, hardened, blackened

RoHS compliant

Select / Deselect Visible Columns
PartCodehd1Typed2tA/FeMaterialMass

GN409.2-15-M8-B15M8B1761719.4ST0.025
GN409.2-15-M8-K15M8K1761719.4ST0.024
GN409.2-15-M8-R15M8R1761719.4ST0.024
GN409.2-20-M10-B20M10B19101921.9ST0.039
GN409.2-20-M10-K20M10K19101921.9ST0.038
GN409.2-20-M10-R20M10R19101921.9ST0.038
GN409.2-20-M12-B20M12B22102225.2ST0.052
GN409.2-20-M12-K20M12K22102225.2ST0.05
GN409.2-20-M12-R20M12R22102225.2ST0.05
GN409.2-25-M8-B25M8B17121719.4ST0.042
GN409.2-25-M8-K25M8K17121719.4ST0.041
GN409.2-25-M8-R25M8R17121719.4ST0.041
GN409.2-25-M12-B25M12B22152225.2ST0.047
GN409.2-25-M12-K25M12K22152225.2ST0.065
GN409.2-25-M12-R25M12R22152225.2ST0.063
GN409.2-30-M10-B30M10B19151921.9ST0.061
GN409.2-30-M10-K30M10K19151921.9ST0.06
GN409.2-30-M10-R30M10R19151921.9ST0.06
GN409.2-30-M12-B30M12B22182225.2ST0.079
GN409.2-30-M12-K30M12K22182225.2ST0.076
GN409.2-30-M12-R30M12R22182225.2ST0.077
GN409.2-30-M16-B30M16B30203033ST0.136
GN409.2-30-M16-K30M16K30203033ST0.137
GN409.2-30-M16-R30M16R30203033ST0.138
GN409.2-40-M10-B40M10B19151921.9ST0.085
GN409.2-40-M10-K40M10K19151921.9ST0.084
GN409.2-40-M10-R40M10R19151921.9ST0.084
GN409.2-40-M12-B40M12B22182225.2ST0.11
GN409.2-40-M12-K40M12K22182225.2ST0.108
GN409.2-40-M12-R40M12R22182225.2ST0.109
GN409.2-50-M12-B50M12B22182225.2ST0.142
GN409.2-50-M12-K50M12K22182225.2ST0.141
GN409.2-50-M12-R50M12R22182225.2ST0.141
GN409.2-50-M16-B50M16B30243033ST0.27
GN409.2-50-M16-K50M16K30243033ST0.25
GN409.2-50-M16-R50M16R30243033ST0.253
