GN413 Indexing Plunger, Stainless Steel, Optional Rest Position
Type A - without rest position, without lock nut

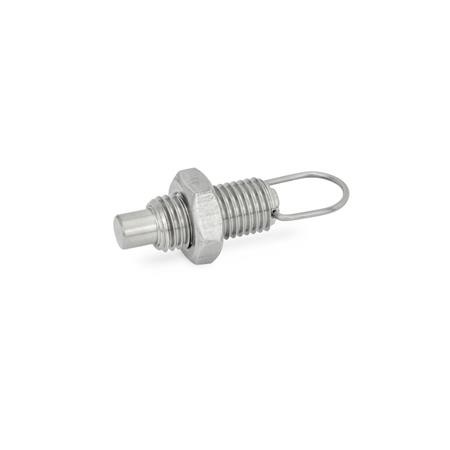

Type AK - without rest position, with lock nut

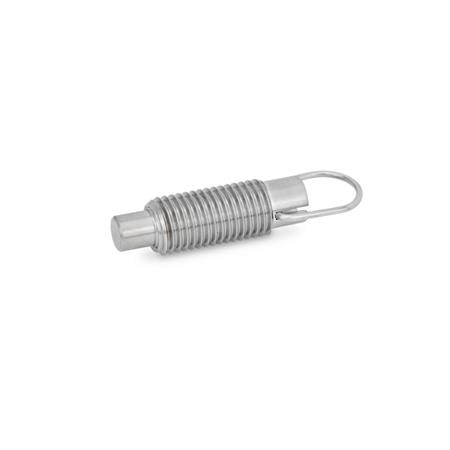

Type C - with rest position, without lock nut

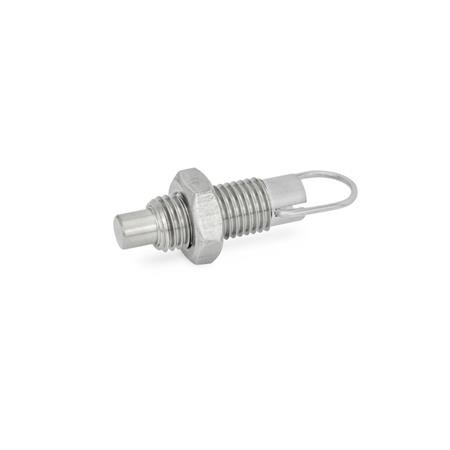

Type CK - with rest position, with lock nut
material characteristics of stainless steel.pdf
Indexing Plunger Types.pdf
Catalogue Technical Specification
2D/3D Cad Files
GN 413 Indexing Plunger, Stainless Steel
Due to its shape, the lifting ring of these stainless steel indexing plungers, GN413, can be used both as a screw-in assist during assembly or as indexing lock (Type C / Type CK).
They are used when the indexing pin is temporarily not allowed to protrude. After the pin is pulled in, turn the pull ring by 90°. The ring is held in position by an indexing notch.
Guide (Threaded socket) - Stainless Steel NI AISI 303
Plunger pin - Stainless Steel AISI 303, chemically nickel plated
Spring - Stainless Steel AISI 301
Lifting ring - Stainless Steel AISI 301
Also available as GN413 in steel.
