GN817 Indexing Plunger, Steel, Plastic Knob





Type B - without lock nut, with knob

Type BK - with lock nut, with lifting knob

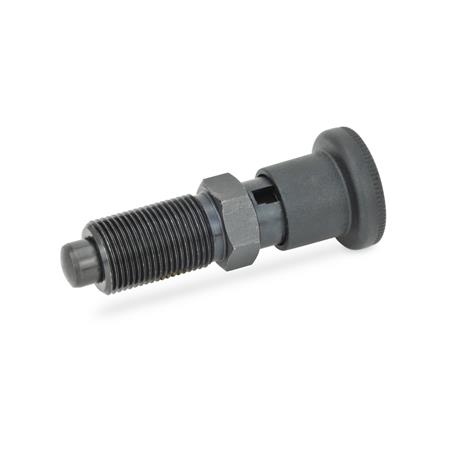

Type C - with rest position, without lock nut

Type CK - with rest position, with lock nut

Type G - without lock nut, with threaded rod

Type GK - with lock nut, with threaded rod

Select Values to Buy:

Tech Spec:



GN817 Indexing Plunger, Steel, Plastic Knob

Indexing plungers with rest position (Type C/CK) are used for applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in this position.

Specification

Steel, blackened

Plunger - hardened

Knob - plastic, Technopolymer (Polyamide PA), black, matt, not removable

RoHS compliant



Select / Deselect Visible Columns
PartCoded1l1TypeMateriald2d3d4d5kl2l3l4l5l6A/FSpring load
in
initial
Spring load
in
end
Mass

GN817-4-4-B44BSTM8x116M3714351654.52.5104.5120.01
GN817-4-4-BK44BKSTM8x116M3714351654.52.5104.5120.013
GN817-4-4-C44CSTM8x116M3714351654.52.5104.5120.012
GN817-4-4-CK44CKSTM8x116M3714351654.52.5104.5120.014
GN817-4-4-G44GSTM8x116M3714351654.52.5104.5120.009
GN817-4-4-GK44GKSTM8x116M3714351654.52.5104.5120.012
GN817-4-6-B46BSTM8x116M3714351654.52.510412.50.011
GN817-4-6-BK46BKSTM8x116M3714351654.52.510412.50.013
GN817-4-6-C46CSTM8x116M3714351654.52.510412.50.013
GN817-4-6-CK46CKSTM8x116M3714351654.52.510412.50.017
GN817-4-6-G46GSTM8x116M3714351654.52.510412.50.009
GN817-4-6-GK46GKSTM8x116M3714351654.52.510412.50.012
GN817-5-5-B55BSTM10x119M4816401865.53125150.018
GN817-5-5-BK55BKSTM10x119M4816401865.53125150.024
GN817-5-5-C55CSTM10x119M4816401865.53125150.021
GN817-5-5-CK55CKSTM10x119M4816401865.53125150.026
GN817-5-5-G55GSTM10x119M4816401865.53125150.016
GN817-5-5-GK55GKSTM10x119M4816401865.53125150.016
GN817-5-8-B58BSTM10x119M4816401865.53125180.017
GN817-5-8-BK58BKSTM10x119M4816401865.53125180.025
GN817-5-8-C58CSTM10x119M4816401865.53125180.02
GN817-5-8-CK58CKSTM10x119M4816401865.53125180.027
GN817-5-8-G58GSTM10x119M4816401865.53125180.016
GN817-5-8-GK58GKSTM10x119M4816401865.53125180.02
GN817-6-6-B66BSTM12x1,523M59204822673.5146.5190.029
GN817-6-6-BK66BKSTM12x1,523M59204822673.5146.5190.037
GN817-6-6-C66CSTM12x1,523M59204822673.5146.5190.033
GN817-6-6-CK66CKSTM12x1,523M59204822673.5146.5190.038
GN817-6-6-G66GSTM12x1,523M59204822673.5146.5190.025
GN817-6-6-GK66GKSTM12x1,523M59204822673.5146.5190.035
GN817-6-9-B69BSTM12x1,523M59204822673.5146250.029
GN817-6-9-BK69BKSTM12x1,523M59204822673.5146250.039
GN817-6-9-C69CSTM12x1,523M59204822673.5146250.035
GN817-6-9-CK69CKSTM12x1,523M59204822673.5146250.03
GN817-6-9-G69GSTM12x1,523M59204822673.5146250.025
GN817-6-9-GK69GKSTM12x1,523M59204822673.5146250.035
GN817-8-8-B88BSTM16x1,528M61024582688.54178.5260.063
GN817-8-8-BK88BKSTM16x1,528M61024582688.54178.5260.08
GN817-8-8-C88CSTM16x1,528M61024582688.54178.5260.066
GN817-8-8-CK88CKSTM16x1,528M61024582688.54178.5260.085
GN817-8-8-G88GSTM16x1,528M61024582688.54178.5260.055
GN817-8-8-GK88GKSTM16x1,528M61024582688.54178.5260.08
GN817-8-12-B812BSTM16x1,528M61024582688.54178.5280.063
GN817-8-12-BK812BKSTM16x1,528M61024582688.54178.5280.078
GN817-8-12-C812CSTM16x1,528M61024582688.54178.5280.069
GN817-8-12-CK812CKSTM16x1,528M61024582688.54178.5280.083
GN817-8-12-G812GSTM16x1,528M61024582688.54178.5280.055
GN817-8-12-GK812GKSTM16x1,528M61024582688.54178.5280.072
GN817-10-12-B1012BSTM16x1,528M61024582688.54179.5380.063
GN817-10-12-BK1012BKSTM16x1,528M61024582688.54179.5380.08
GN817-10-12-C1012CSTM16x1,528M61024582688.54179.5380.07
GN817-10-12-CK1012CKSTM16x1,528M61024582688.54179.5380.085
GN817-10-12-G1012GSTM16x1,528M61024582688.54179.5380.055
GN817-10-12-GK1012GKSTM16x1,528M61024582688.54179.5380.072
GN817-12-15-B1215BSTM20x1,533M61228.56733108.542211.5400.117
GN817-12-15-BK1215BKSTM20x1,533M61228.56733108.542211.5400.16
GN817-12-15-C1215CSTM20x1,533M61228.56733108.542211.5400.125
GN817-12-15-CK1215CKSTM20x1,533M61228.56733108.542211.5400.161
GN817-12-15-G1215GSTM20x1,533M61228.56733108.542211.5400.111
GN817-12-15-GK1215GKSTM20x1,533M61228.56733108.542211.5400.138
GN817-16-20-B1620BSTM24x233M81528.578.5381211.552713540.202
GN817-16-20-BK1620BKSTM24x233M81528.578.5381211.552713540.262
GN817-16-20-C1620CSTM24x233M81528.578.5381211.552713540.22
GN817-16-20-CK1620CKSTM24x233M81528.578.5381211.552713540.25
GN817-16-20-G1620GSTM24x233M81528.578.5381211.552713540.192
GN817-16-20-GK1620GKSTM24x233M81528.578.5381211.552713540.26
#83568.11~83573.47#



Also available with red knob, with extended knob, with T handle, in stainless steel, stainless steel with red knob or stainless steel with T handle
