GN414 Indexing Plungers, Safety Push Button Lock, Stainless Steel

images/300/GN414-Stainless-Steel-Indexing-plungers-with-safety-lock-unlocking-with-push-button-Drawing_W.png

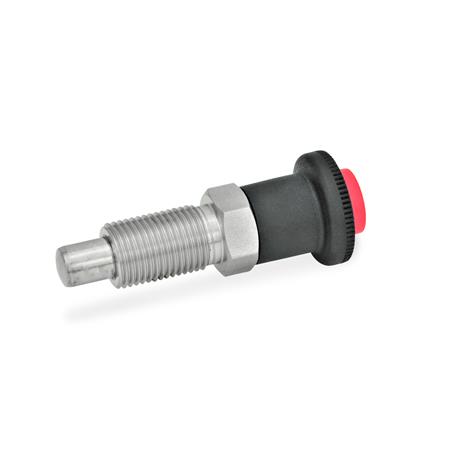

Type A - without lock nut

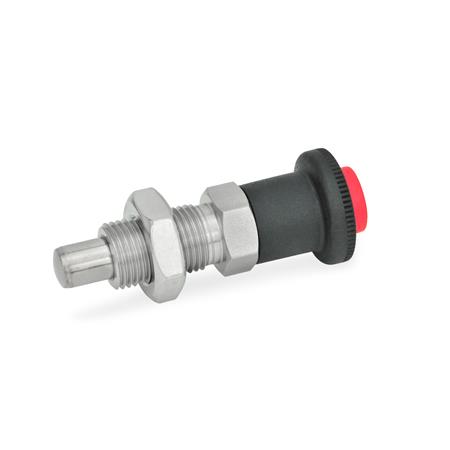

Type AK - with lock nut

Select Values to Buy:

Tech Spec:



GN414 Indexing Plungers, Safety Push Button Lock, Stainless Steel

These stainless steel indexing plungers GN414 with safety lock are used when the inadvertent retraction of the plunger pin is to be prevented. The protruding plunger is first locked and may be unlocked for pulling only by exerting axial pressure on the red safety push-button.

The safety lock engages in the front end position, i.e. automatically if the indexing pin protrudes, with the locking mechanism housed fully in the operating button and protected from malfunctions. The specified axial load bearing capacity refers to the locking force of the bolt against inadvertent operation which must not be exceeded.

Being made of stainless steel, they are ideal for use in clean room environments, such as found in the medical and pharmaceutical industries, and also in food industries and the associated processing and packaging.

Specification

Stainless Steel NI AISI 303

Plunger - chemically nickel plated

Knob - Plastic, Technopolymer (Polyamide PA), black-grey, RAL 7021, matt, temperature resistant up to 80 °C, not removable

Push button - Technopolymer (Polyacetal POM), red, RAL 3000, matt

RoHS compliant

Select / Deselect Visible Columns
Close
Hided1Show
Hidel1Show
Hided2Show
Hided3Show
HideeShow
Hidel2Show
Hidel3Show
Hidel4Show
HideA/FShow
HideSpring load in N initialShow
HideSpring load in N endShow
HideSpring load in NShow
HideTypeShow
HideMaterialsShow
PartCoded1l1d2d3el2l3l4A/FSpring load in N initialSpring load in N endSpring load in NTypeMaterialsMass

GN414-6-6-A-NI66"M12x1,5"2821.956226196.519120ANI0.044
GN414-6-6-AK-NI66"M12x1,5"2821.956226196.519120AKNI0.044
GN414-6-9-A-NI69"M12x1,5"2821.95622619625120ANI0.045
GN414-6-9-AK-NI69"M12x1,5"2821.95622619625120AKNI0.045
GN414-8-8-A-NI88"M16x1,5"2821.962268198.526120ANI0.07
GN414-8-8-AK-NI88"M16x1,5"2821.962268198.526120AKNI0.07
GN414-8-12-A-NI812"M16x1,5"2821.962268198.528120ANI0.072
GN414-8-12-AK-NI812"M16x1,5"2821.962268198.528120AKNI0.072
GN414-10-12-A-NI1012"M16x1,5"2821.962268199.538120ANI0.074
GN414-10-12-AK-NI1012"M16x1,5"2821.962268199.538120AKNI0.074
