Product Design

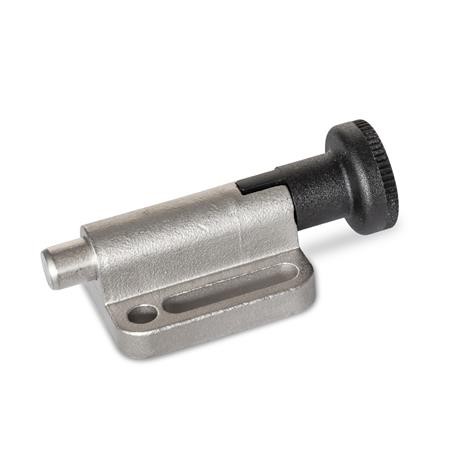

GN417 Indexing Plungers, Stainless Steel, with Knob, Optional Rest Position
Stainless Steel-Indexing plungers GN417 with flange are mounted parallel to the plungers and are characterized by an especially low height. The mounting hole pattern with slots offers generous adjustment options, such as for the use of aluminum sections. The use of washers makes it easier to mount the parts using the slots.
Indexing plungers with rest position (type C) are used for such applications where the plunger has to stay in its retracted position. After pulling out, the knob is turned by 90°. A notch keeps the plunger in this position.
The stainless steel version allows the indexing plungers to be used in more aggressive environments.
Specification
Guide - Stainless Steel precision casting NI, CF-8, blank, matte shot-blasted
Plunger pin - Stainless Steel AISI 303
Spring - Stainless Steel AISI 301
Knob - Plastic (Polyamide PA), black, matte, not removable
Accessory
Stainless steel locators GN417.1
CAD Viewer
Technical Data
