Threaded Blanking Plugs GN441 Aluminium Heat Resistant suit screw hole uneven surfaces GN 441

Standard Machine Elements > Oil Level Sight Glasses, Level Indicators & Plugs > Threaded Plugs / Sealing Plugs
< Previous Product Next Product >

GN441 Threaded Blanking Plug, Aluminium, Heat Resistant

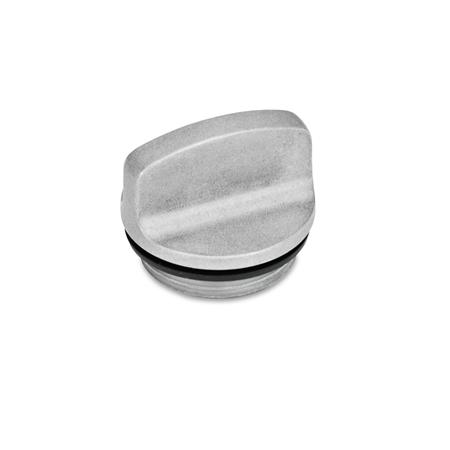

Identification Number 1 - without vent drilling.

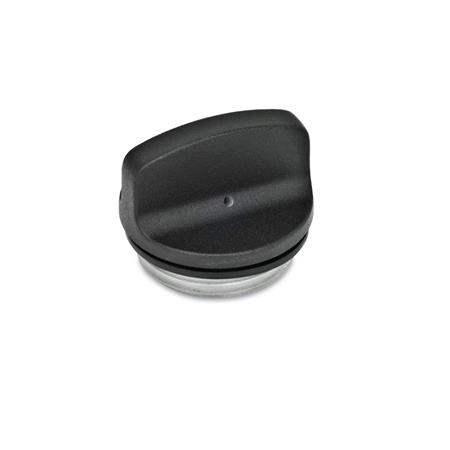

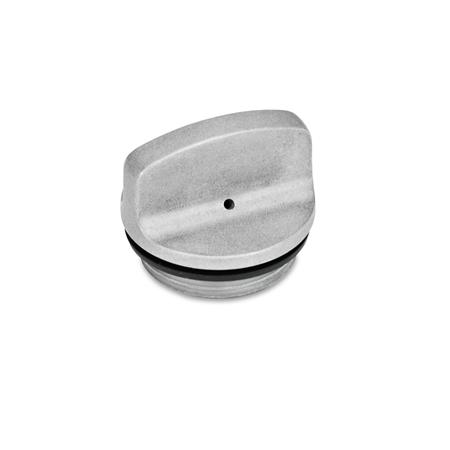

Identification Number 2 - with vent drilling.

Select Values to Buy:

Tech Spec:



GN 441 Threaded Blanking Plug, Aluminium, Heat Resist

Threaded plugs GN441, with external diameter d1 match the screw-in holes for DIN3852 pipe bolt connections.

The sealing ring is embedded in a radial recess on the plane side, which makes the sealing ring captive and cannot be squeezed out during tightening. The sealing is also relatively soft, enhancing the sealing effect even on uneven surfaces.

Specification

Aluminium

Plastic coated, black, RAL 9005, textured finish SW. Blank BL tumbled

Temperature resistant up to 100° C

Sealing ring - rubber (Perbunan)

Threaded plugs with dipstick available on request.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2IdentificationFinishd3d4l1l2l3stMaterialMass

GN441-22-M16X1,5-1-SW22M16x1,51SW2M52681558AL0.012
GN441-22-M16X1,5-1-BL22M16x1,51BL2M52681558AL0.012
GN441-22-M16X1,5-2-SW22M16x1,52SW2M52681558AL0.012
GN441-22-M16X1,5-2-BL22M16x1,52BL2M52681558AL0.012
GN441-22-G3/8-1-SW22G3/81SW2M52681558AL0.012
GN441-22-G3/8-1-BL22G3/81BL2M52681558AL0.012
GN441-22-G3/8-2-SW22G3/82SW2M52681558AL0.012
GN441-22-G3/8-2-BL22G3/82BL2M52681558AL0.012
GN441-26-M20X1,5-1-SW26M20x1,51SW2M527.58.51658AL0.017
GN441-26-M20X1,5-1-BL26M20x1,51BL2M527.58.51658AL0.017
GN441-26-M20X1,5-2-SW26M20x1,52SW2M527.58.51658AL0.017
GN441-26-M20X1,5-2-BL26M20x1,52BL2M527.58.51658AL0.017
GN441-26-G1/2-1-SW26G1/21SW2M527.58.51658AL0.017
GN441-26-G1/2-1-BL26G1/21BL2M527.58.51658AL0.017
GN441-26-G1/2-2-SW26G1/22SW2M527.58.51658AL0.017
GN441-26-G1/2-2-BL26G1/22BL2M527.58.51658AL0.017
GN441-32-M26X1,5-1-SW32M26x1,51SW2M52991768AL0.027
GN441-32-M26X1,5-1-BL32M26x1,51BL2M52991768AL0.027
GN441-32-M26X1,5-2-SW32M26x1,52SW2M52991768AL0.027
GN441-32-M26X1,5-2-BL32M26x1,52BL2M52991768AL0.027
GN441-32-G3/4-1-SW32G3/41SW2M52991768AL0.027
GN441-32-G3/4-1-BL32G3/41BL2M52991768AL0.027
GN441-32-G3/4-2-SW32G3/42SW2M52991768AL0.027
GN441-32-G3/4-2-BL32G3/42BL2M52991768AL0.027
GN441-40-G1-1-SW40G11SW2M532.5111878AL0.048
GN441-40-G1-1-BL40G11BL2M532.5111878AL0.048
GN441-40-G1-2-SW40G12SW2M532.5111878AL0.048
GN441-40-G1-2-BL40G12BL2M532.5111878AL0.048
