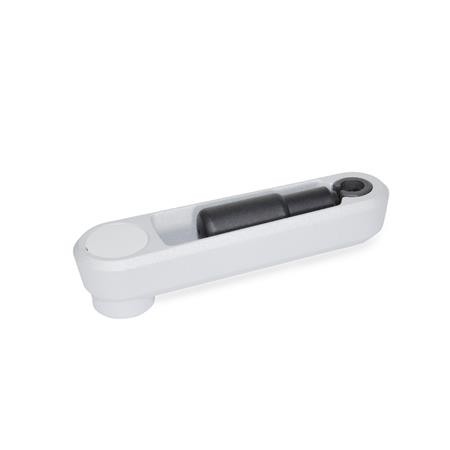

GN472.3 Safety Crank Handle, Retractable Handle, Aluminium







Type B - Round Bore (d1)

Type V - Square (s)

Select Values to Buy:

Tech Spec:



GN472.3 Safety Crank Handle, Retractable Handle, Aluminium

These cranked handles with retractable handpiece are modern, attractive and meet all demands of industrial designers.

They are ideal for applications where the handpiece must not protrude, such as where there is a risk of the handle catching in clothing or in other controls.

The handle is pulled out of its taper seating in the direction of the arrow and then tilted. A compression spring locks the handle firmly in both end positions. In the folded away position, it fits neatly into a recess in the arm of the handle, when folding it will automatically snap back into this recess. When folded out, it automatically re-engages.

Specification

Body - Aluminium, plastic coated,

Colours available -Black, textured finish RAL 9005, SW. Silver, textured finish, RAL 9006, SR.

Hub - machined

Hub cover - light grey

Retractable Handle GN798.3

RoHS compliant

Select / Deselect Visible Columns
PartCodeld1 Bore/ s SquareColourd2d3h1h2h3h4h5ØMaterialMass

GN472.3-80-B10-SW80B10SW2329203264.34316AL0.131
GN472.3-80-B10-SR80B10SR2329203264.34316AL0.131
GN472.3-80-V10-SW80V10SW2329203264.34316AL0.11
GN472.3-80-V10-SR80V10SR2329203264.34316AL0.131
GN472.3-100-B12-SW100B12SW2634244.5304.257.518AL0.18
GN472.3-100-B12-SR100B12SR2634244.5304.257.518AL0.18
GN472.3-100-V12-SW100V12SW2634244.5304.257.518AL0.18
GN472.3-100-V12-SR100V12SR2634244.5304.257.518AL0.18
GN472.3-125-B14-SW125B14SW2836319374.276.524AL0.33
GN472.3-125-B14-SR125B14SR2836319374.276.524AL0.305
GN472.3-125-V14-SW125V14SW2836319374.276.524AL0.25
GN472.3-125-V14-SR125V14SR2836319374.276.524AL0.28
