GN480.1 Retaining round rods tubes tubings clamp mountings

All Stainless Steel Products
Standard Machine Elements > Tube Clamp Connectors, Clamp mountings & Connecting Elements > Tubes / Rods
< Previous Product Next Product >

GN480.1 Retaining Rod or Tube, Round, Stainless Steel

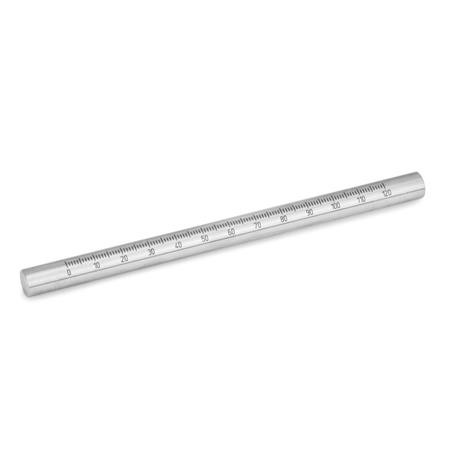

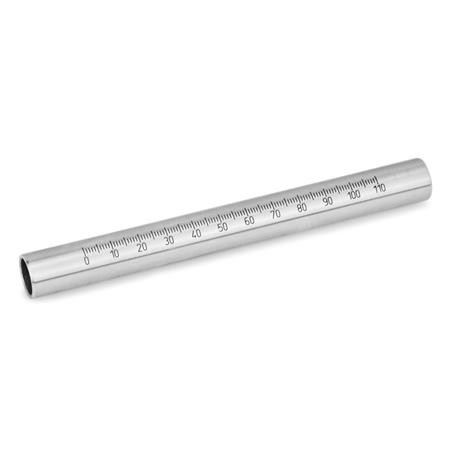

Type LS - with scale (mm-graduation)

Type OS - without scale

Select Values to Buy:

Tech Spec:



GN480.1 Retaining Rod or Tube, Round, Stainless Steel, for Clamp Mountings

The outside dimensions of the retaining square tubings GN 480.1 are matched for use with clamp mountings.

The retaining square tubings can also be used as cable lead-through or cable glands.

Other scales on request.

Specification

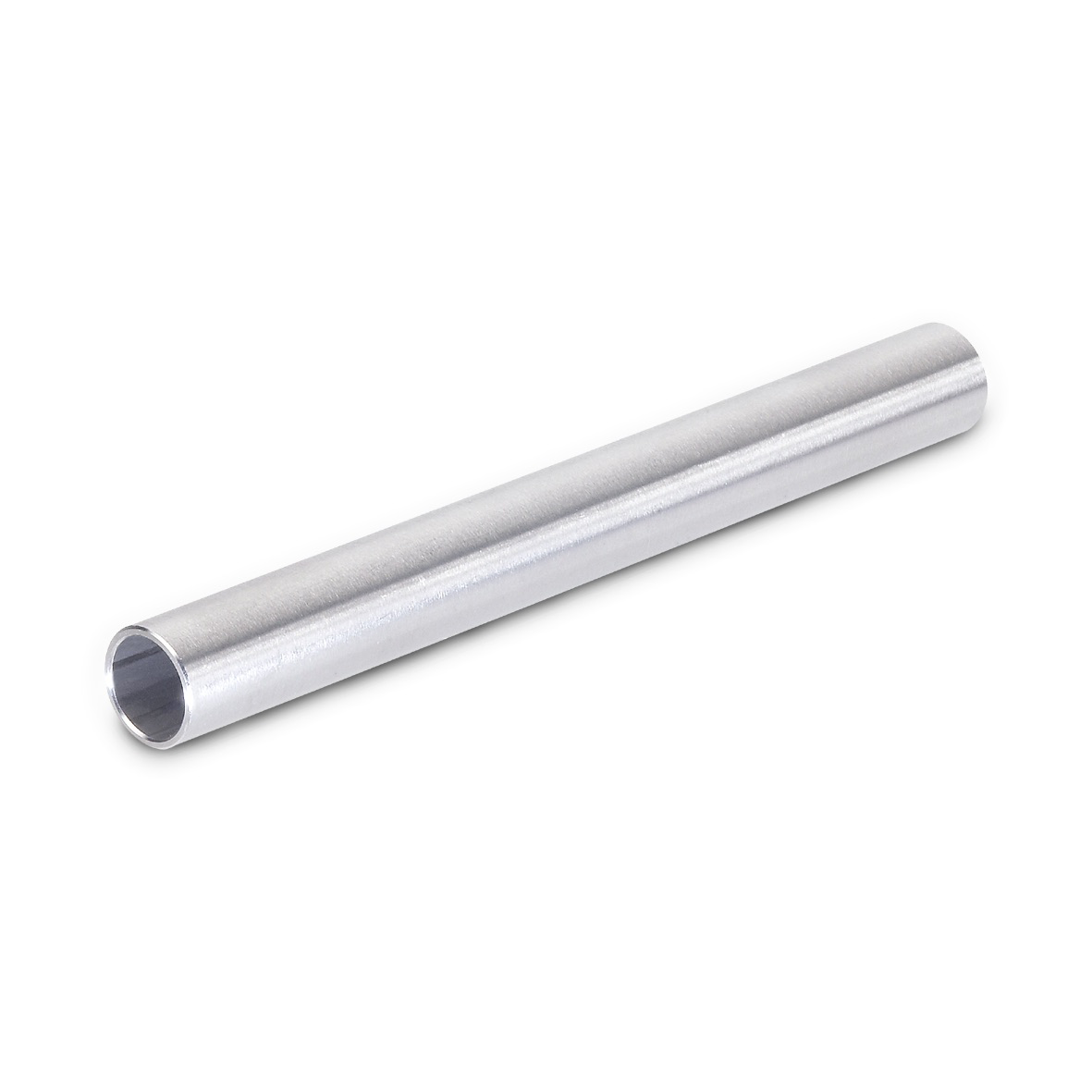

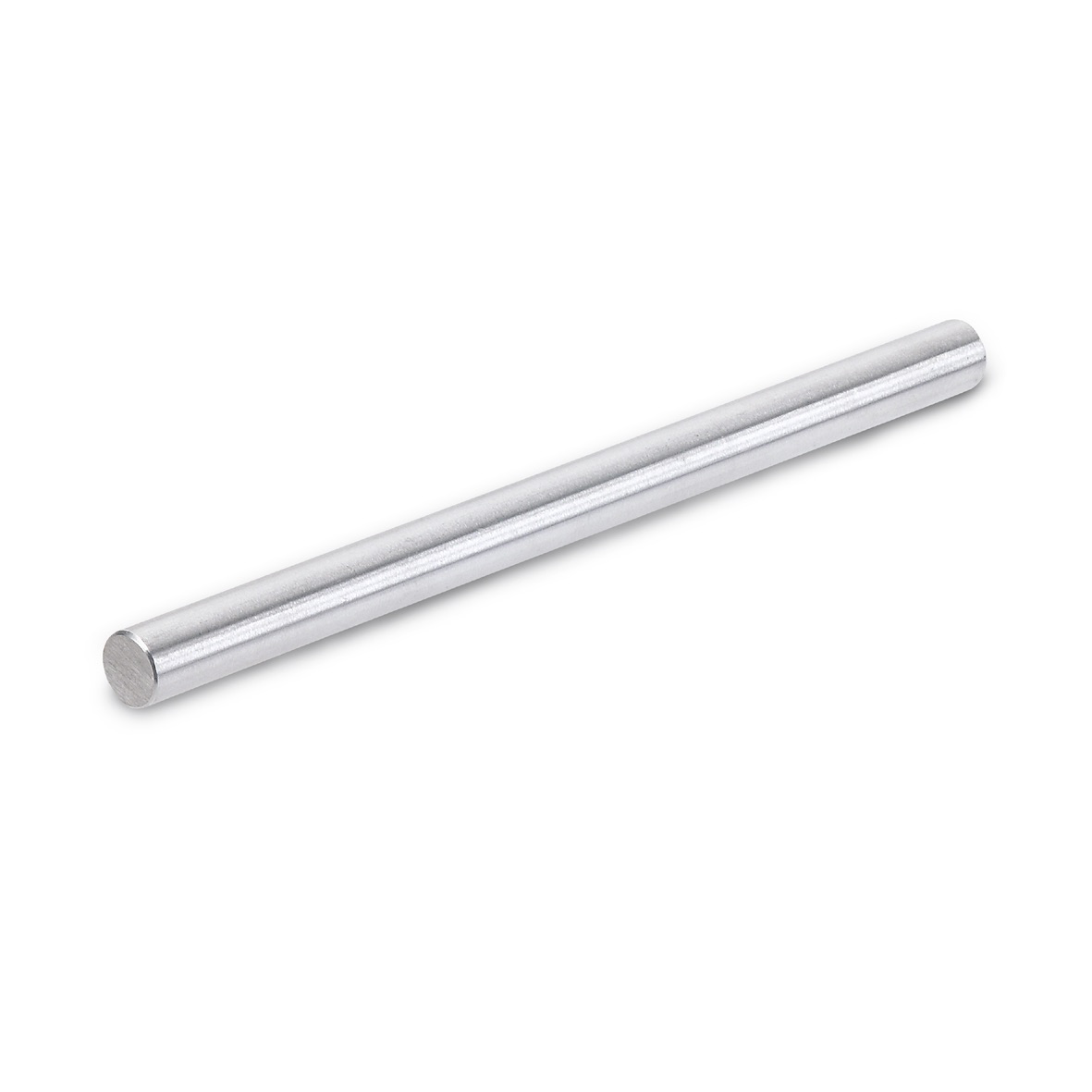

Retaining rods/ tubes, round

Stainless Steel AISI 304 NI, ground

Longitudinal Scale is engraved in laser precision

RoHS compliant

Select / Deselect Visible Columns
PartCoded1(s1)lenght (l)MaterialTyped2kMass

GN480.1-D8-100-NI-LSD8100NILS~150.039
GN480.1-D8-100-NI-OSD8100NIOS~150.039
GN480.1-D8-150-NI-LSD8150NILS~150.059
GN480.1-D8-150-NI-OSD8150NIOS~150.059
GN480.1-D8-200-NI-LSD8200NILS~150.078
GN480.1-D8-200-NI-OSD8200NIOS~150.078
GN480.1-D8-250-NI-LSD8250NILS~150.098
GN480.1-D8-250-NI-OSD8250NIOS~150.098
GN480.1-D8-300-NI-LSD8300NILS~150.118
GN480.1-D8-300-NI-OSD8300NIOS~150.118
GN480.1-D8-350-NI-LSD8350NILS~150.118
GN480.1-D8-350-NI-OSD8350NIOS~150.138
GN480.1-D8-400-NI-LSD8400NILS~150.158
GN480.1-D8-400-NI-OSD8400NIOS~150.158
GN480.1-D10-100-NI-LSD10100NILS~150.062
GN480.1-D10-100-NI-OSD10100NIOS~150.062
GN480.1-D10-150-NI-LSD10150NILS~150.095
GN480.1-D10-150-NI-OSD10150NIOS~150.092
GN480.1-D10-200-NI-LSD10200NILS~150.123
GN480.1-D10-200-NI-OSD10200NIOS~150.123
GN480.1-D10-250-NI-LSD10250NILS~150.154
GN480.1-D10-250-NI-OSD10250NIOS~150.154
GN480.1-D10-300-NI-LSD10300NILS~150.18
GN480.1-D10-300-NI-OSD10300NIOS~150.185
GN480.1-D10-350-NI-LSD10350NILS~150.217
GN480.1-D10-350-NI-OSD10350NIOS~150.217
GN480.1-D10-400-NI-LSD10400NILS~150.247
GN480.1-D10-400-NI-OSD10400NIOS~150.25
GN480.1-D12-100-NI-LSD12100NILS9150.037
GN480.1-D12-100-NI-OSD12100NIOS9150.037
GN480.1-D12-150-NI-LSD12150NILS9150.056
GN480.1-D12-150-NI-OSD12150NIOS9150.056
GN480.1-D12-200-NI-LSD12200NILS9150.074
GN480.1-D12-200-NI-OSD12200NIOS9150.074
GN480.1-D12-250-NI-LSD12250NILS9150.093
GN480.1-D12-250-NI-OSD12250NIOS9150.093
GN480.1-D12-300-NI-LSD12300NILS9150.112
GN480.1-D12-300-NI-OSD12300NIOS9150.112
GN480.1-D12-350-NI-LSD12350NILS9150.12
GN480.1-D12-350-NI-OSD12350NIOS9150.129
GN480.1-D12-400-NI-LSD12400NILS9150.015
GN480.1-D12-400-NI-OSD12400NIOS9150.148
GN480.1-D15-100-NI-LSD15100NILS12200.092
GN480.1-D15-100-NI-OSD15100NIOS12200.046
GN480.1-D15-150-NI-LSD15150NILS12200.09
GN480.1-D15-150-NI-OSD15150NIOS12200.069
GN480.1-D15-200-NI-LSD15200NILS12200.09
GN480.1-D15-200-NI-OSD15200NIOS12200.096
GN480.1-D15-250-NI-LSD15250NILS12200.09
GN480.1-D15-250-NI-OSD15250NIOS12200.114
GN480.1-D15-300-NI-LSD15300NILS12200.14
GN480.1-D15-300-NI-OSD15300NIOS12200.1
GN480.1-D15-350-NI-LSD15350NILS12200.156
GN480.1-D15-350-NI-OSD15350NIOS12200.156
GN480.1-D15-400-NI-LSD15400NILS12200.19
GN480.1-D15-400-NI-OSD15400NIOS12200.188
GN480.1-D16-100-NI-LSD16100NILS13200.05
GN480.1-D16-100-NI-OSD16100NIOS13200.05
GN480.1-D16-150-NI-LSD16150NILS13200.08
GN480.1-D16-150-NI-OSD16150NIOS13200.076
GN480.1-D16-200-NI-LSD16200NILS13200.1
GN480.1-D16-200-NI-OSD16200NIOS13200.101
GN480.1-D16-250-NI-LSD16250NILS13200.12
GN480.1-D16-250-NI-OSD16250NIOS13200.126
GN480.1-D16-300-NI-LSD16300NILS13200.16
GN480.1-D16-300-NI-OSD16300NIOS13200.151
GN480.1-D16-350-NI-LSD16350NILS13200.184
GN480.1-D16-350-NI-OSD16350NIOS13200.184
GN480.1-D16-400-NI-LSD16400NILS13200.21
GN480.1-D16-400-NI-OSD16400NIOS13200.209
GN480.1-D20-100-NI-LSD20100NILS16250.085
GN480.1-D20-100-NI-OSD20100NIOS16250.085
GN480.1-D20-150-NI-LSD20150NILS16250.127
GN480.1-D20-150-NI-OSD20150NIOS16250.133
GN480.1-D20-200-NI-LSD20200NILS16250.17
GN480.1-D20-200-NI-OSD20200NIOS16250.17
GN480.1-D20-250-NI-LSD20250NILS16250.213
GN480.1-D20-250-NI-OSD20250NIOS16250.213
GN480.1-D20-300-NI-LSD20300NILS16250.256
GN480.1-D20-300-NI-OSD20300NIOS16250.256
GN480.1-D20-350-NI-LSD20350NILS16250.15
GN480.1-D20-350-NI-OSD20350NIOS16250.288
GN480.1-D20-400-NI-LSD20400NILS16250.34
GN480.1-D20-400-NI-OSD20400NIOS16250.356
