GN526: Control Knob

Close Next Previous

Close Next Previous

Close Next Previous

Close Next Previous

Close Next Previous

Close Next Previous

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

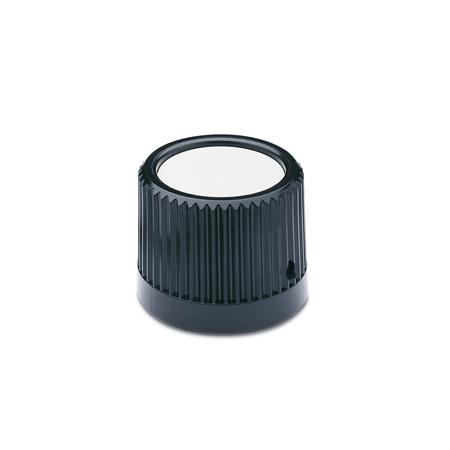

GN526 Knurled Control Knobs

These GN 526 plastic knurled control knobs with steel inserts are resistant to solvents, oils, grease and other chemical agents.

The cover of this control knob shrouds the fixing components and the shaft end. The cover also lends itself to having a logo or other symbols printed. The cap is mounted by simply pressing it by hand into place. Disassembly is done by applying light pressure on the edge of the cover.

These temperature-resistant knobs are a versatile machine element and ideal for a wide range of applications.

For matching scale rings, please see GN526.1.

Specification

Plastic, Technopolymer (Polyamide PA). Glass fibre reinforced, temperature resistant up to 130° C, black, shiny finish.
Bush - Steel, blackened.
Grub screw - Steel, blackened
Cap - Technopolymer (Polyacetal POM), matte finish.
- Black, RAL 9005, DSW
- Orange, RAL 2004, DOR
- Grey, RAL 7035, DGR
- Yellow, RAL 1021, DGB
- Blue, RAL 5024, DBL
- Red, RAL 3000, DRT
- Green, RAL 6017, DGN
