GN617.2 Indexing Plunger, Optional Rest, Threaded Plastic Body, Steel Plunger, Red Knob

Choose your Part

Please select desired options to reveal part number, price and availability

Options

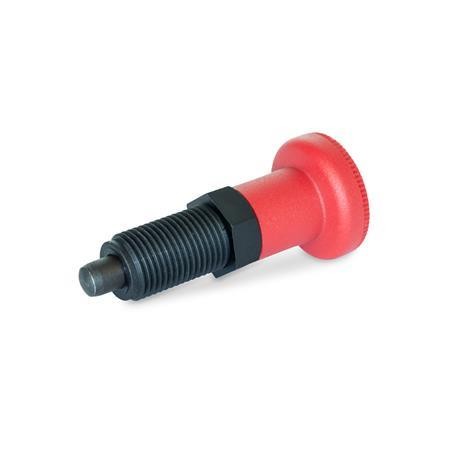

Type B - without rest position, without lock nut

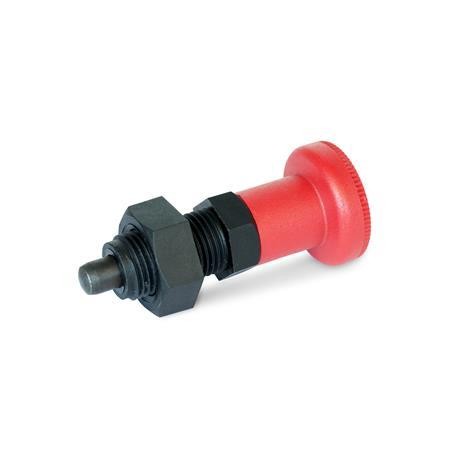

Type BK - without rest position, with lock nut

Type C - with rest position, without lock nut

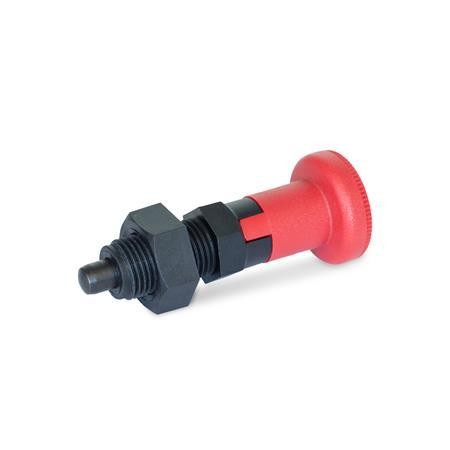

Type CK - with rest position, with lock nut

Product Description

GN617.2 Indexing Plunger, Optional Rest, Threaded Plastic Body, Steel Plunger

Indexing plungers GN 617.2 with plastic body are a reasonably priced indexing plunger variant. The dimensions correspond to those of the GN 617 or GN 617.1 indexing plungers.

These indexing plungers with rest position are used for applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° after being retracted.

The head of the plunger body is provided with a suitable notch in opposite positions to prevent the plunger from accidentally slipping back into its forward position.

Specification

• Threaded body - Plastic (Polyamide PA-HP), Glass fibre reinforced, Temperature resistant up to 130 °C, Black, matte
• Plunger pin - Steel, hardened, blackened
• Pressure Spring - Stainless Steel AISI 302
• Knob - Plastic, Technopolymer (Polyamide PA), black matt finish, not removable, RT
• Lock nut - Plastic (Polyamid PA-HP) Black, matte
