GN618 Indexing Plunger without Thread, Steel, Plastic Knob

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - with knob

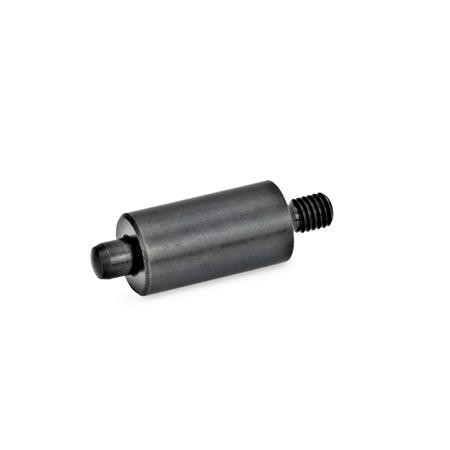

Type G - with threaded rod

Product Description

GN618 Indexing Plunger without Thread, Steel, Plastic Knob

Indexing plungers GN 618 without thread are for applications where welding or resin bonding (Loctite) or clamping is favoured.

Type G with threaded plunger end can be used without the standard knob - they are for applications where a special knob to the customers' own design is required or other instance where the standard knob is not suitable.

When being in the end position (spring is "on block") the indexing plungers are constructed in such a way that axial loads can also be absorbed. For applications, however, where the loads applied through the operator via knob are higher (Type G) additional information can be submitted on request.

Specification

• Steel, weldable, blackened. Plunger pin, hardened.
• Knob - Plastic, (Polyamide PA), black, matt finish, not removable.
