GN820.1 Horizontal Clamps Vertical Base low profile clamping arm operating handle GN 820.1 820-1 GN820-1 GN 820-1

Standard Machine Elements > Toggle Clamps, Power & Hook Clamps > Toggle Clamps
< Previous Product Next Product >

GN820.1 Horizontal Clamp, with Vertical Base



images/300/GN820.1-Horizontal-clamps-with-vertical-base-sketch_H.png

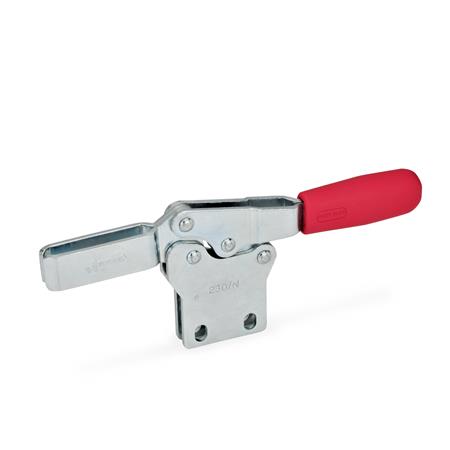

Type N - U-bar version, with two flanged washers

Type NC - U-bar version, with two flanged washers and GN708.1 Spindle Assembly

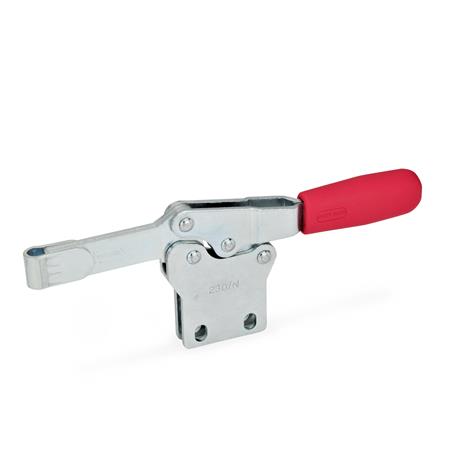

Type P - solid clamping arm

Select Values to Buy:

Tech Spec:



GN 820.1 Horizontal Clamp with Vertical Base

These GN820.1 horizontal acting toggle clamps work according to the toggle principle: the lever and clamping bar move in the opposite direction.

They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. A special feature of this clamp is its low profile in clamping position. They are designed in such a way to avoid the operator's fingers being caught between the retracting clamping arm and the operating handle (safety distance).

Horizontal acting toggle clamps in the U bar version with two flanged washers (Type N) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type NC (GN708.1).

Type P version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with GN809 Clamp Mounts to hold the work piece in place.

Specification

Steel, case hardened, C 10, zinc plated, blue passivated.

Bearing pins - tempered.

Bearing rivets (from size 355 upwards) - case hardened.

All moving parts lubricated with special grease.

Hand grip - High quality, oil resistant, red plastic.

Also available as GN820.1 in stainless steel.

Accessory

GN708.1 clamping bolt, with rubber tip.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMaterialSizeTypeFH in N
Holding
Capacity
ab1b2b3b4d1d2h1h2h3h4h5
Max.
l1l2l3l4l5m1m2m3rswMass

GN820.1-75-NC1075N9002028845.5M54.545.527.511~~1186840~~13.53.5543~~0.09
GN820.1-75-NCC1075NC9002028845.5M54.545.527.5111912.51186840~4513.53.5543~150.09
GN820.1-75-PC1075P900~2884~M54.545.527.511~~11868~49.5~13.53.55434~0.09
GN820.1-130-NC10130N100032361056.5M65.5644416~~1709253~~265.88.862~~0.2
GN820.1-130-NCC10130NC100032361056.5M65.564441625.527.51709253~55265.88.862~17.50.25
GN820.1-130-PC10130P1000~36105~M65.5644416~~17092~64~265.88.8625~0.21
GN820.1-230-NC10230N170037441268.5M86.5755018~~19610963.5~~266.5973~~0.33
GN820.1-230-NCC10230NC170037441268.5M86.5755018302619610963.5~68266.5973~200.37
GN820.1-230-PC10230P1700~44126~M86.5755018~~196109~78~266.59736~0.34
GN820.1-355-NC10355N1800586014710.4M108.51026922~~27016196~~417.59.6110~~0.7
GN820.1-355-NCC10355NC1800586014710.4M108.510269223742.527016196~77417.59.6110~190.77
GN820.1-355-PC10355P1800~60147~M108.51026922~~270161~115~417.59.61107~0.72
GN820.1-455-NC10455N32006570181012.4M128.511980.526~~309186116~~41.51112.5128~~1.2
GN820.1-455-NCC10455NC32006570181012.4M128.511980.5264348309186116~10041.51112.5128~331.311
GN820.1-455-PC10455P3200~701810~M128.511980.526~~309186~135~41.51112.512810~1.23
