GN820.2 Horizontal Clamps GN 820.2 820-2 GN820-2 GN 820-2

Standard Machine Elements > Toggle Clamps, Power & Hook Clamps > Toggle Clamps
< Previous Product Next Product >

GN820.2 Horizontal Clamp Zinc Plated, for Side Mounting

images/300/GN820.2-Horizontal-clamps-for-side-mounting-sketch_H.png

Type MF - U bar version with two flanged washers.

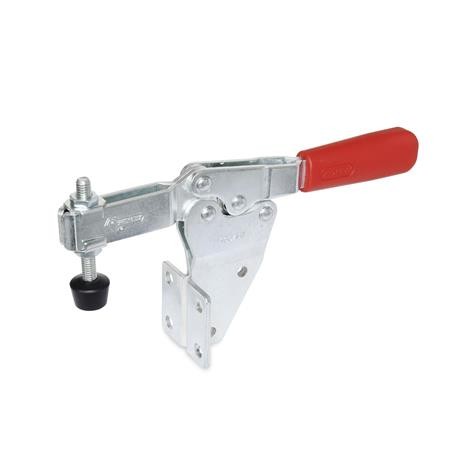

Type MFC - U-bar version, with two flanged washers and GN708.1 Spindle Assembly

Select Values to Buy:

Tech Spec:


GN 820.2 Horizontal Clamp Zinc Plated, for Side Mounting

These horizontal acting toggle clamps GN820.2 work according to the toggle principle: lever and clamping bar move in the opposite direction.

They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. The 90° rotated mounting surface allows a space-saving installation in addition to the clamping point. They are designed to ensure that, when opening, the operators fingers are not trapped between the clamping lever and the clamping arm (safety distance).

Horizontal acting toggle clamps in the U-bar version with two flanged washers (Type MF) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type MFC (GN708.1).

Stepped side washers are included.

Compatible with GN708.1 clamping bolt, with rubber tip.

Specification

Steel, case-hardened, C10, zinc plated, blue passivated

Bearing pins - tempered

Bearing rivets (for size 355 and over) - case hardened

All moving parts - lubricated with special grease

Hand grip - High quality, oil resistant, red plastic

Type MFC - spindle assembly GN708.1 , type A, steel, zinc plated, rubber tip 85 Shore A

Also available as GN820.2, stainless steel

RoHS compliant

Select / Deselect Visible Columns
PartCodeSizeTypeMaterialFH in N
Holding
Capacity
ab1b2b3d1d2h1h2h3h4h5l1l2l3l4m1m2m3rswMass

GN820.2-75-MF75MFC10900203025.55.5M54.5623911~~1183072~1813.5642.52~0.105
GN820.2-75-MFC75MFCC10900203025.55.5M54.562391119301183072451813.5642.52150.128
GN820.2-130-MF130MFC1010003239356.5M65.58558.516~~1704595~26226.5612.5~0.24
GN820.2-130-MFC130MFCC1010003239356.5M65.58558.51625.548.517045955526226.5612.517.50.26
GN820.2-230-MF230MFC1017003743408.5M86.51026918~~19552113~28.5248703~0.4
GN820.2-230-MFC230MFCC1017003743408.5M86.510269183053195521136828.5248703200.42
GN820.2-355-MF355MFC10180058525210.5M108.51359222~~27085166~323210108.53.5~0.84
GN820.2-355-MFC355MFCC10180058525210.5M108.513592223775.52708516677323210108.53.5190.9
