GN62444.2 Threaded Plugs for Cable Glands, PG Thread, Brass, Plastic.
Choose your Part
Please select desired options to reveal part number, price and availability
Product Description

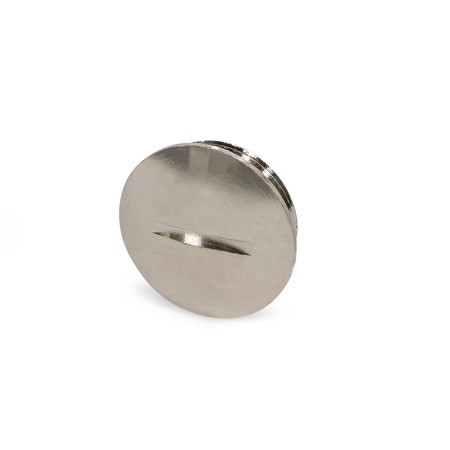

GN62444.2 Threaded Plugs for Cable Glands, PG Thread, Brass, Plastic.
Threaded plugs GN 62444.2 seal unused mounting holes for cable glands. They can be screwed into an existing internal thread or mounted in a through hole using a mounting nut.
The metal versions include an O-ring for sealing against the enclosure. The plastic version is sealed without an additional sealing ring.
Specification
- Threaded plug
- Brass, nickel plated. Operating temperature -20 degrees C to +80 degrees C.MS.
- Plastic, polyamide (PA). Operating temperature -40 degrees C to +100 degrees C. Glass fibre reinforced. Grey, RAL 7035 KLG.
- O-ring for MS - Acrylonitrile butadiene rubber (NBR)
- Protection Class
- IP 68 for MS
- IP 54 for KLG
Accessory
Mounting Nuts GN62444.1
CAD Viewer
Technical Data
