GN6336.9 Quick Release Star Knob, Optional Increased Clamping Force, Steel / Stainless Steel
Choose your Part
Please select desired options to reveal part number, price and availability
Options

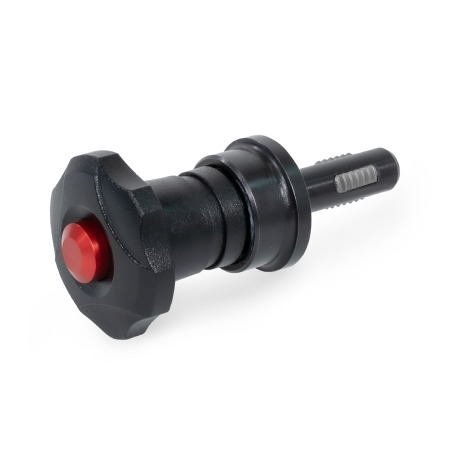

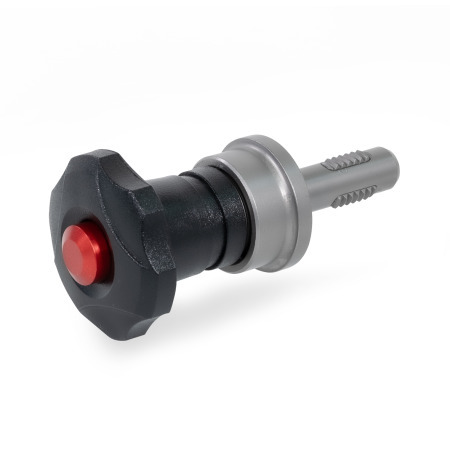

Type M - with increased clamping force.

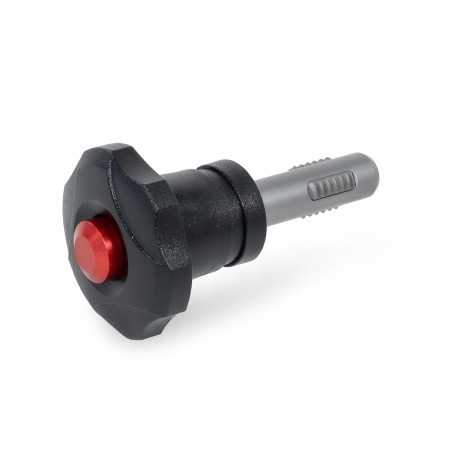

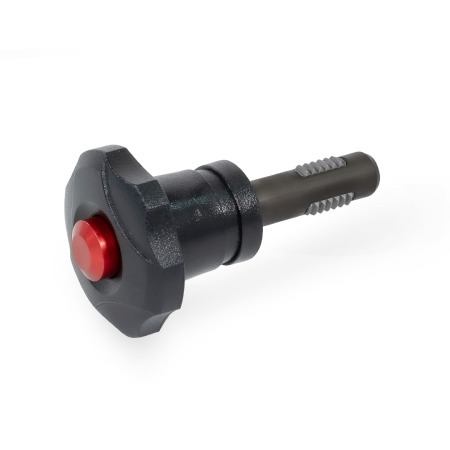

Type O - without increased clamping force
Product Description
GN6336.9 Quick Release Star Knob, Optional Increased Clamping Force, Steel / Stainless Steel.
Quick release star knobs GN 6336.9 are used for quick and easy clamping and fastening.
Pressing the push button retracts the threaded segments, allowing the star knob to be inserted into a threaded hole. After releasing the push button in this position, the star knob can be tightened in less than a single turn. The connection is released in the reverse order.
To ensure a fully secure connection, the locating thread must be true to gauge and the threaded segments must be firmly engaged.
Specification
Pin
- Steel, manganese phosphated S
- Stainless steel AISI 303 / AISI 630 N
Knob - plastic, polyamide (PA), operating temperature -30 C to +80 C, black
Push button - Aluminium, anodized, red
Threaded segments - stainless steel AISI 630, precipitation hardened
Axial bearing for type M
- Steel, nitrided, blackened for S
- Stainless steel AISI 630, hardened for N
Spring - stainless steel
CAD Viewer
Technical Data
