GN810.4 Vertical Toggle Clamp, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type BL - U-bar version, with two flanged washers

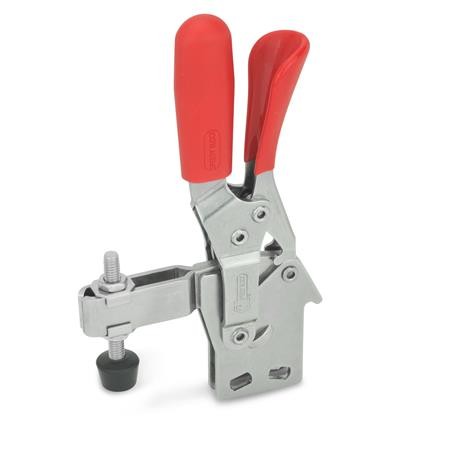

Type BLC - U-bar version, with two flanged washers and GN708.1 spindle assembly

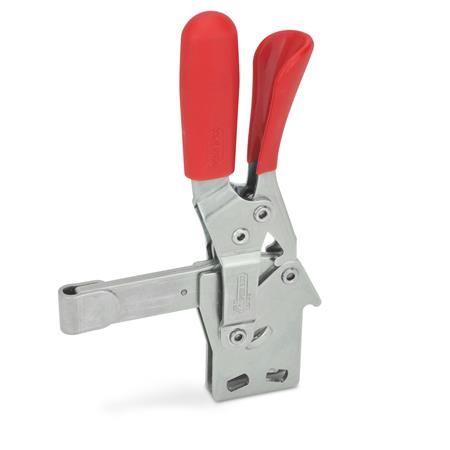

Type FL - Solid bar version with clasp

Product Description

GN810.4 Vertical Acting Toggle Clamp, Stainless Steel, Safety Hook, Vertical Mounting

Stainless steel toggle clamps, GN 810.4 are latched in both end positions. In the clamped position, this prevents unintentional opening or opening caused by vibrations; and in the open position, it prevents self-closing of the toggle clamp, such as due to an extended clamping arm. The latching can be disabled with a single hand to allow for opening / closing.

They work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Toggle clamps in the U-bar version with two flanged washers (type BL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type BLC.

Type FL can either be used by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with GN809 holders for clamping screws to hold the work piece in place.

Specification

Stainless Steel NI - AISI 304

All moving parts lubricated with special grease

Hand grip - High quality, oil resistant, red plastic

Clamping Screw GN708.1, type A, Stainless Steel AISI 304, Rubber tip 85 Shore A

Accessory

Clamping Screw

GN801 clamp mounts for toggle clamps (for type BL)

GN809 clamp mounts for toggle clamps (for type FL)
