GN609.5
Distance Bushing, Stainless, Indexing Plunger Mount
Please select desired options to reveal part number, price and availability
Options
Type B - without rest position, without lock nut
Type BK - without rest position, with lock nut
Type C - with rest position, without lock nut
Type CK - with rest position, with lock nut
Product Description

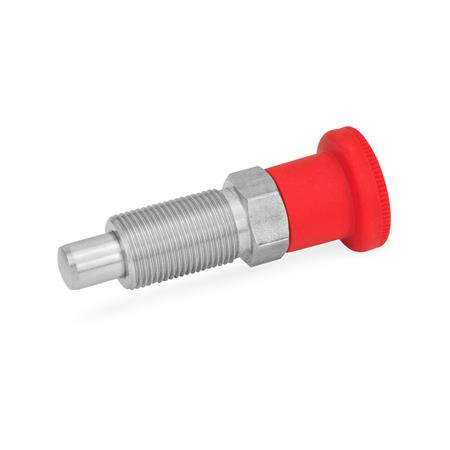

GN817 Indexing Plunger, Stainless Steel, Red Plastic Knob
Stainless steel indexing plungers with rest position (Type C/CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in this position.
Specification
Stainless Steel NI - AISI 303
Plunger pin - chemically nickel plated
Knob - Plastic Technopolymer (Polyamide PA), red RT, RAL 3000, not removable
Standard part number GN818 has been changed, because of a change of the standard part number your input is no longer valid. Your search was automatically changed to the new standard part number GN 817.
