GN822.10 Mini Indexing Plunger, With / Without Rest, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

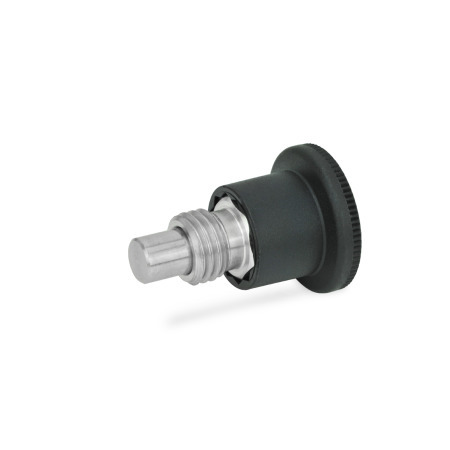

Type B - without rest position, with plastic knob.

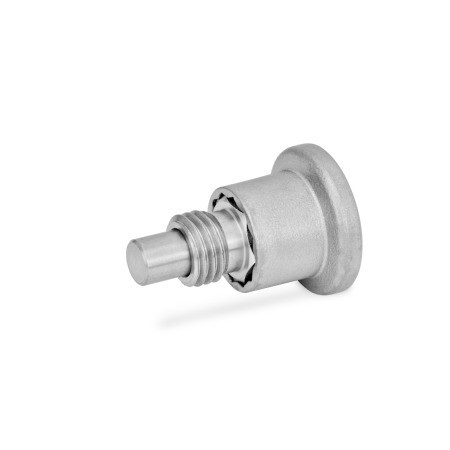

Type BN - without rest position, with stainless steel knob.

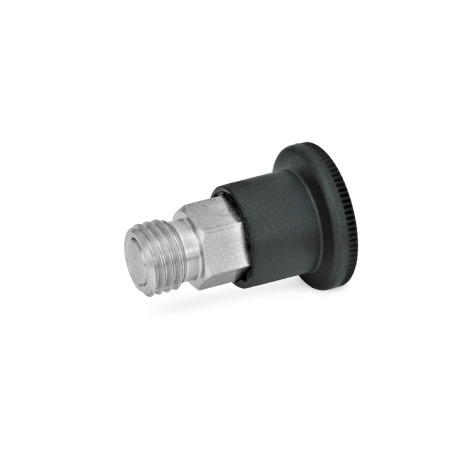

Type C - with rest position, with plastic knob.

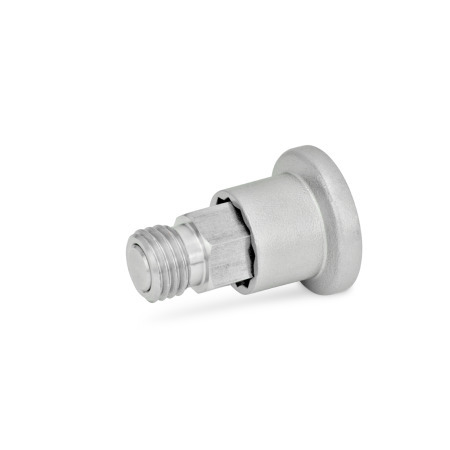

Type CN - with rest position, with stainless steel knob

Product Description

GN822.10 Mini Indexing Plunger, With / Without Rest, Stainless Steel

Mini indexing plungers GN 822.10 are distinguished for their small dimensions.

Based on the principle of the mini indexing plungers GN822, they have been designed for installation in thin walled sheet metal constructions. This model combines a clever type of construction with all current sizes of bolts and threads.

Pulling the plunger pin will release the hex nut which can then be tightened with an open-end spanner.

In types C and CN, the button can be turned by 30 degrees after retracting the indexing pin, holding it in the “retracted” position using the indexing lock.

Specification

Guide / Plunger pin, stainless steel AISI 316L

Knob, not removable

Pressure spring, stainless steel AISI 316Ti

Accessory

Thin hex nuts ISO 8675 (with fine thread)

On Request

With red knob
