GN843.1 Adjustable Plunger Clamp, Push Pull Clamping

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Type AS - without mounting bracket

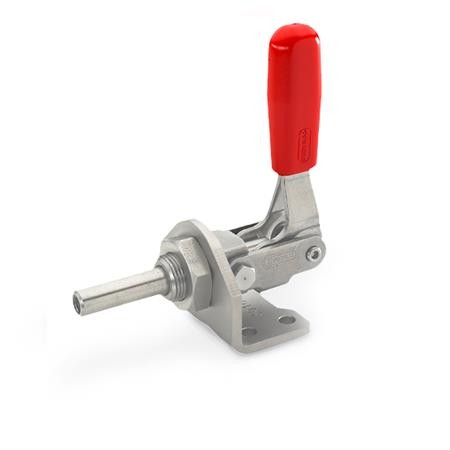

Type ASW - with mounting bracket

CAD Viewer Technical Data

Product Description

GN843.1 Adjustable Plunger Clamp, Push Pull Clamping

These plunger clamps GN 843.1 can be mounted on a mounting bracket (Type ASW) or directly on the jig.

The centre bush fixing method allows the operating handle to be turned into the most favourable position.

Specification

Stainless Steel NI - parts in sheet metal AISI 304. Other parts AISI 303

All moving parts lubricated with a special grease

Hand grip - high quality, oil resistant, red plastic.

Accessory

Spindle assemblies
