GN880.1 Connector Piece for Oil Drain Valves GN880

CloseNextPrevious



CloseNextPrevious

GN880.1: Connector for Oil Drain Valves
Type: A - Connector Straight



CloseNextPrevious

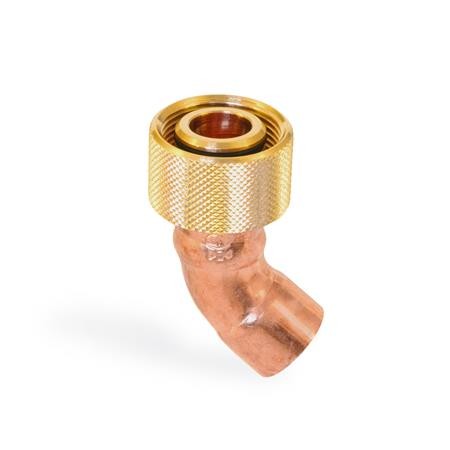

GN880.1: Connector for Oil Drain Valves
Type: B - Connector 45 Degrees



CloseNextPrevious

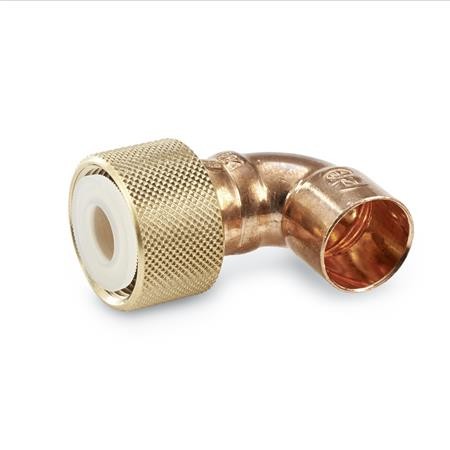

GN880.1: Connector for Oil Drain Valves
Type: C - Connector 90 Degrees



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - Straight Connector

Type B - 45° Connector

Type C - 90° Connector

CAD Viewer Technical Data

Product Description

GN880.1 Connector Piece for Oil Drain Valves GN880

These connector pieces, GN 880.1, are required when using oil drain valves GN880.

Screwing on the connector piece will activate the valve plate of the oil drain valve, allowing the oil to flow through the hose into a container.

The plug prevents remaining oil from dripping out after discharging.

The plugs and the hose clip (only type B and C) are included.

Specification

Connecting nut with hose liner - Brass MS

L bend 45° / 90° - Copper

O-Ring - Rubber NBR (Perbunan)

Hose clip - Steel, zinc plated

Plug - Plastic, LD-PE

Oil drain valves and connectors may also be bought as a kit, GN880 which benefits from a discounted price.

On Request

Connectors with clear hose, GN880.1 are also available.
