GN900.6
Rotary Table, Stainless Steel & Aluminium
Festive Closure Notice - All orders placed between 24th December and 2nd January will be processed when we return on 2nd January. Thank you for your understanding
BERGER TOOLS LTD
BERGER TOOLS LTD
Festive Closure Notice - All orders placed between 24th December and 2nd January will be processed when we return on 2nd January. Thank you for your understanding
Please select desired options to reveal part number, price and availability
Options
Identification no. 1 - Without Adjustable Hand Lever

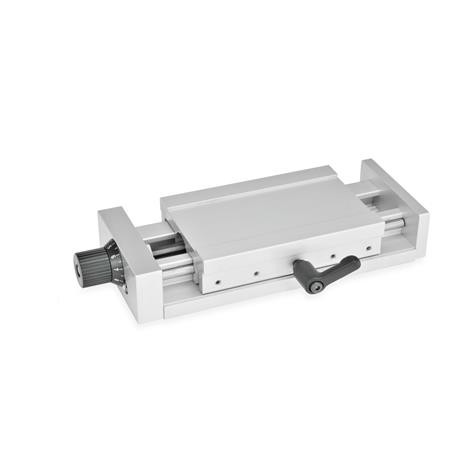

Identification no. 2 - With Adjustable Hand Lever From b=50+

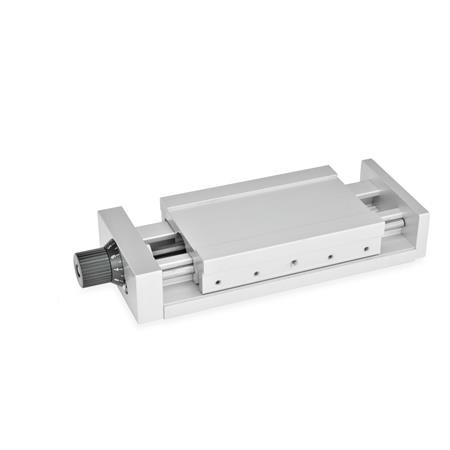

Type D - With control knob

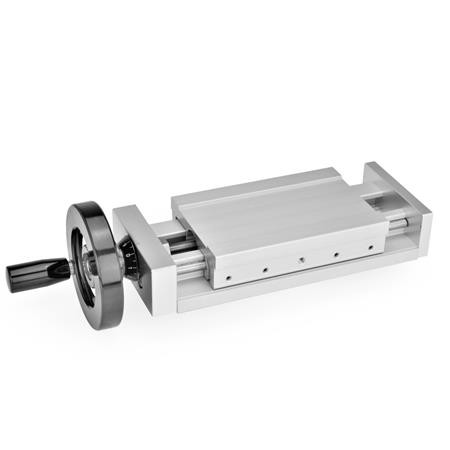

Type H - With handwheel

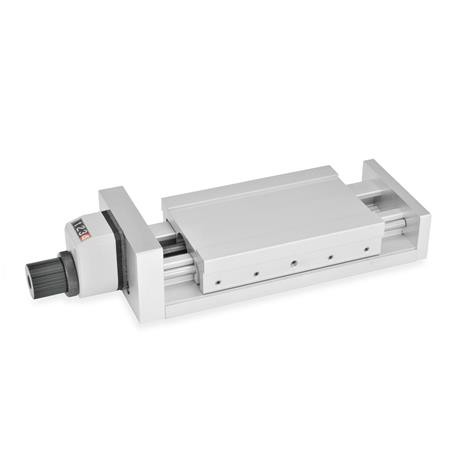

Type DN - With control knob and digital position indicator GN954, Type AN

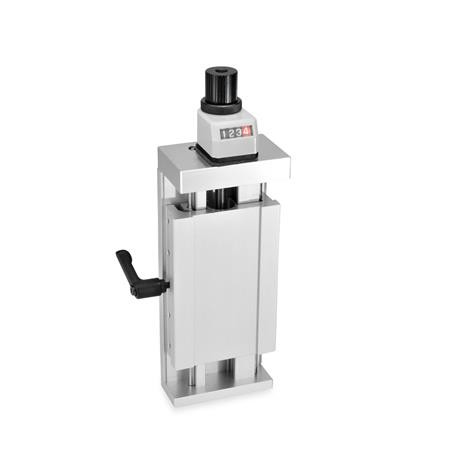

Type DR - With control knob and digital position indicator GN954, Type AR

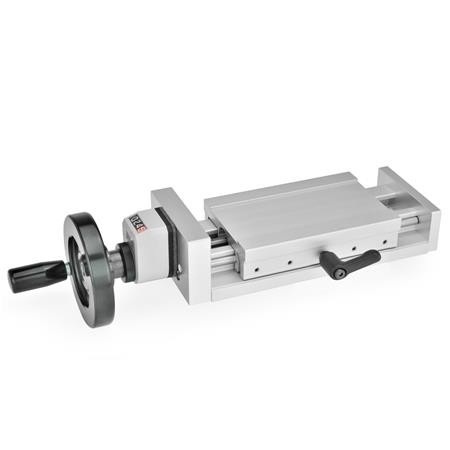

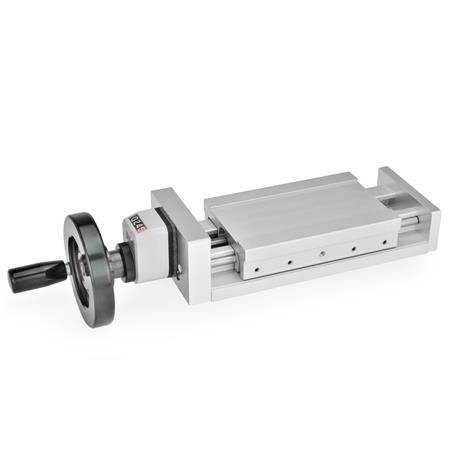

Type HN - With handwheel and digital position indicator GN954, Type AN

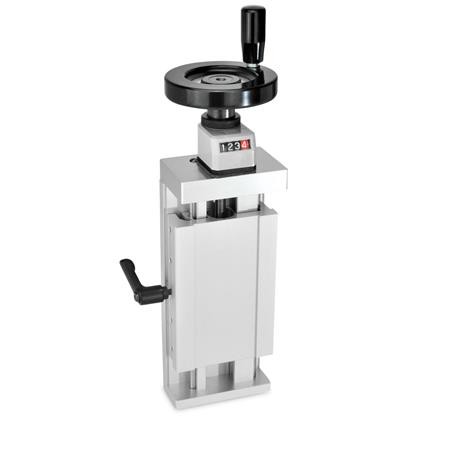

Type HR - With handwheel and digital position indicator GN954, Type AR

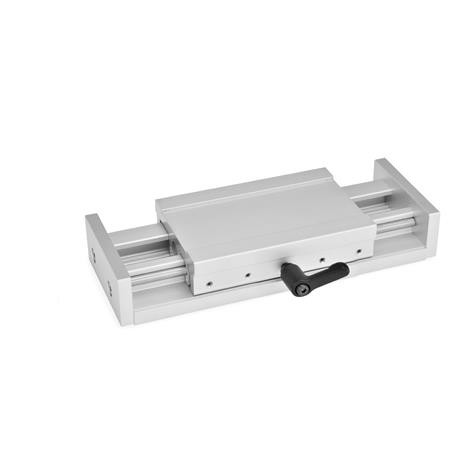

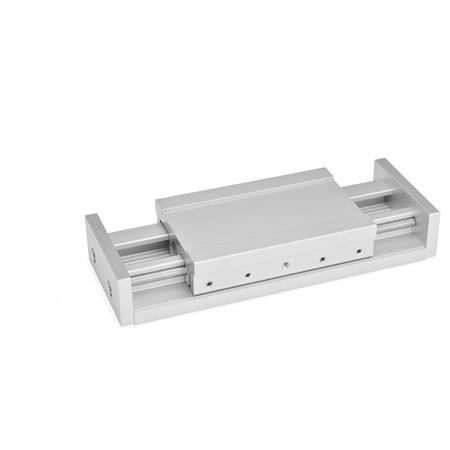

Type S - Without adjustable spindle and operating element
Product Description
GN900 Adjustable Slide Units
These adjustable slide units, GN 900, can be combined with a range of adaptors to give various axis configurations.
These fastening units and connecting sets (GN900.1, GN900.2, GN900.3) can be clamped to the adjustable slide units in a rapid and simple way.
For fine adjustment there is a scale ring graduated in increments of 0.05 mm and digital position indicator 0.02 mm.
Furthermore this adjustable slide units (Type D, with control knob) is rust proof.
Specification
Slides / end plates - Aluminium AL, press formed, anodized extrusion, natural colour
Guide shafts - Stainless Steel NI
Drive - Lead spindle / ball bearing, Stainless Steel NI, Lead nut, Plastic
Fixing screws - Stainless Steel NI
Control knob / Scale ring - Aluminum AL, black anodized
Position Indicator GN954
