GN9190.1 Side Clamps with Clamping Thread

CloseNextPrevious



CloseNextPrevious

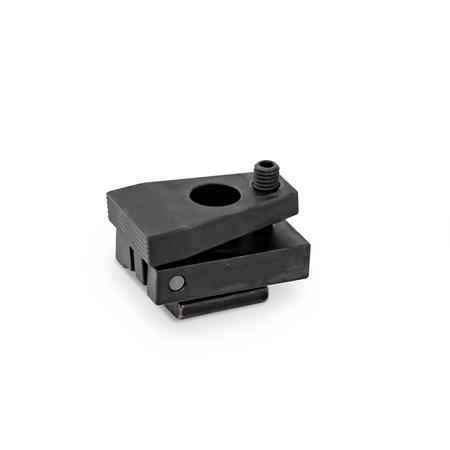

GN9190.1 Side Clamps - Type: E, Code: G



CloseNextPrevious

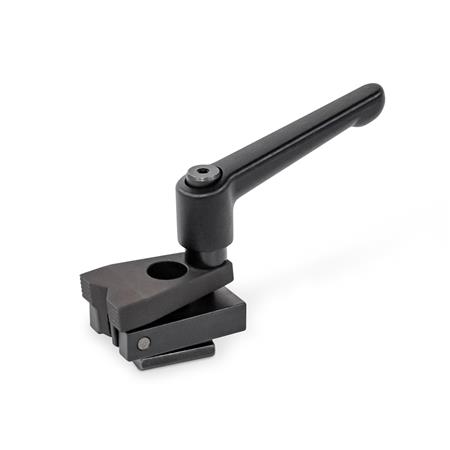

GN9190.1 Side Clamps - Type: E, Code: K



CloseNextPrevious

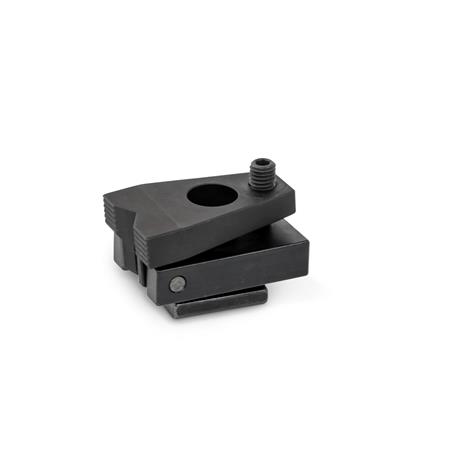

GN9190.1 Side Clamps - Type: P, Code: G



CloseNextPrevious

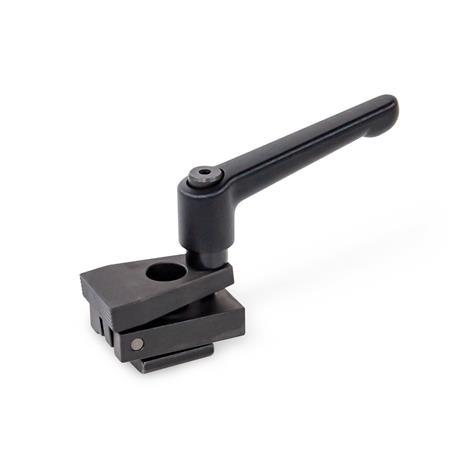

GN9190.1 Side Clamps - Type: P, Code: K



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type E - With serrated clamping jaw

Type - With prism clamping jaw

Code G - Clamping stroke with ball point screw

Code K - Clamping stroke with adjustable hand lever

CAD Viewer Technical Data

Product Description

GN9190.1 Side Clamps with Clamping Thread

With side clamps GN 9190.1, workpieces are clamped with a pivoted clamping jaw. The clamping force acts laterally and from above to pull down on the workpiece and clamp it against fixed stops and the supporting surface.

The clamping stroke of the clamping jaw results from the screw-in depth of the clamping thread d4. When the set screw is released, the clamping jaw is returned by spring force. The low overall height of the side clamps allow full surface machining of the workpiece.

Side clamps can be screwed in directly, e.g. in a mounting plate, or fastened to machine tables with T-slots. In addition, they can be mounted in any position perpendicular to the T-slot using the slotted support blocks GN9190.3, which are available as an accessory.

Specification

Clamping mechanisms - Steel, case-hardened, blackened

Nut for T-slot - Steel, blackened. Property class 10

Socket cap screw DIN 912 - Steel, blackened. Property class 12.9

Ball point screw (code G) - Steel, blackened, ball hardened

Adjustable hand lever (code K) - Zinc die casting, powder coated, black RAL 9005, textured finish

Threaded insert - Steel, blackened, ball hardened

Accessory

Slotted Support Blocks GN9190.3
