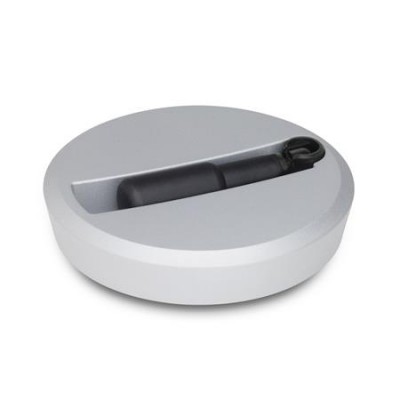

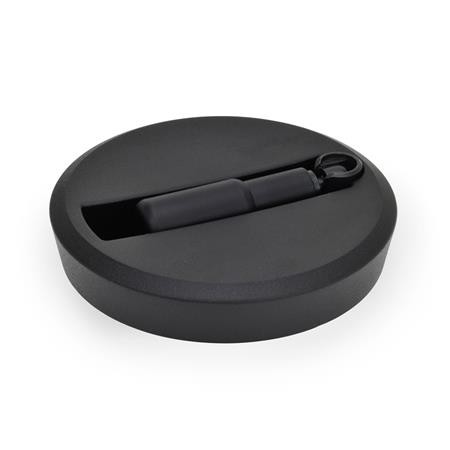

GN923.7 Aluminium Solid Disc Safety Handwheel with Retractable Handle

These GN 923.7 solid disc handwheels with retractable safety handles have a modern and attractive design. These handwheels are suitable for applications where the handle must not remain in the operating position. In order to bring the handle into the operating position it must be turned 90° to a stop against a torsion spring and then pushed against the spring pressure into its hold position. The handwheel can easily be rotated by maintaining the forward thrust on the handle. When the handle is released, the spring returns it back to the retracted position. The removable plastic cover shrouds the fixing components such as screws, countersunk washers as well as the shaft end.
