GN961
Angle Piece for Profile Systems 30 / 40, Aluminium
Please select desired options to reveal part number, price and availability
We're sorry, this item has been discontinued, Please try searching for a different item, or contact us for advice on an alternative.
Options

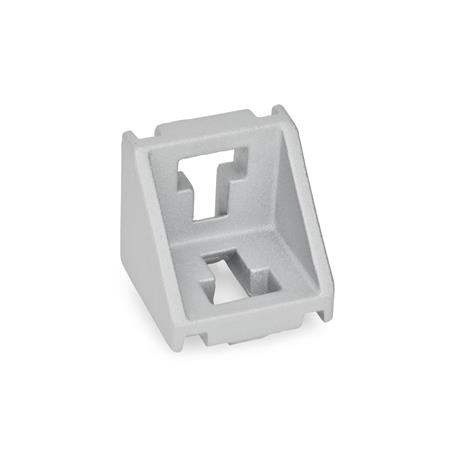

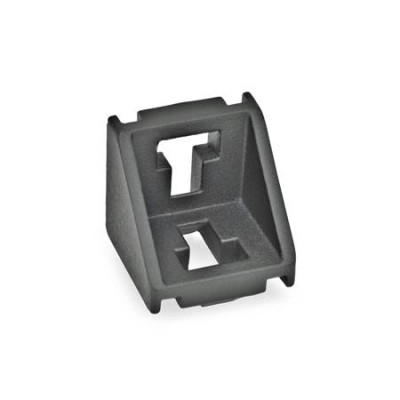

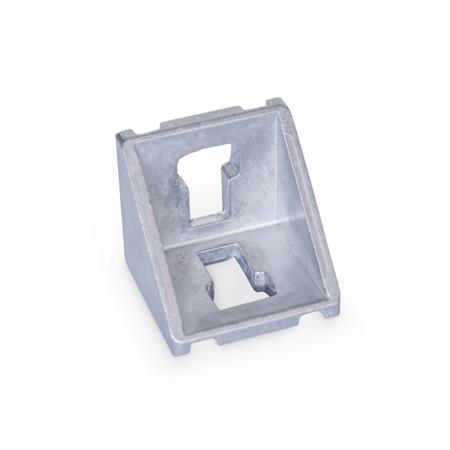

Type A - Without assembly set, without cover

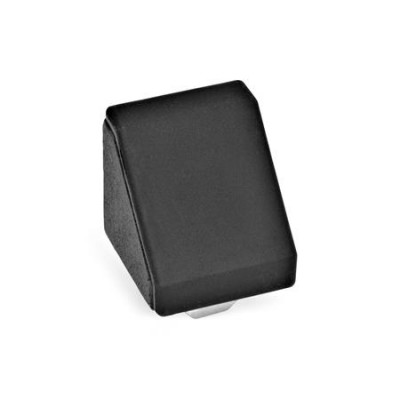

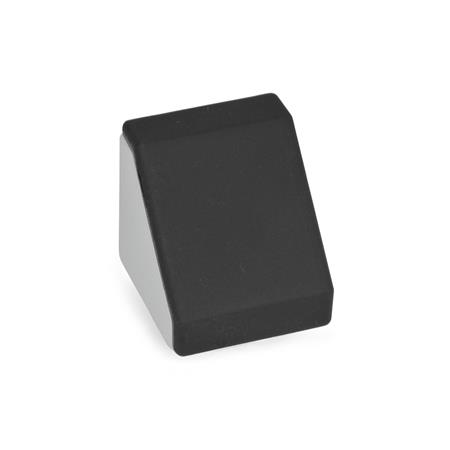

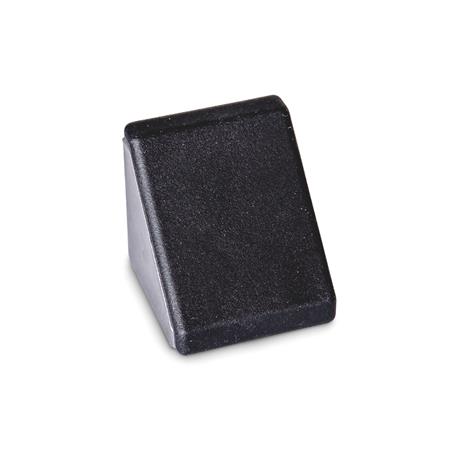

Type B - With assembly set, with cover

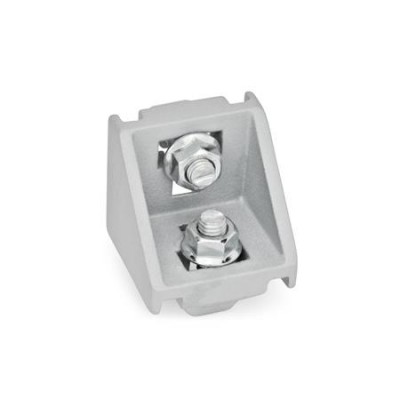

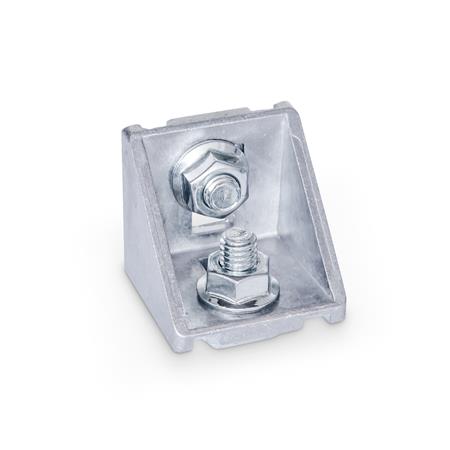

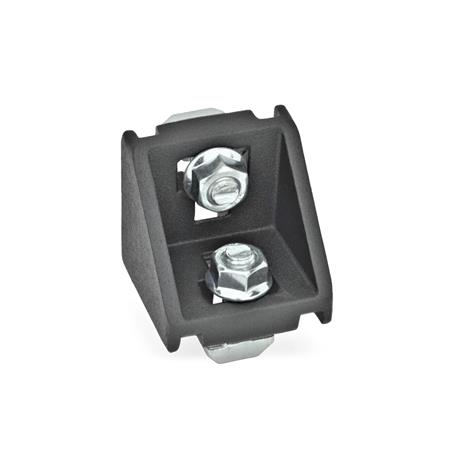

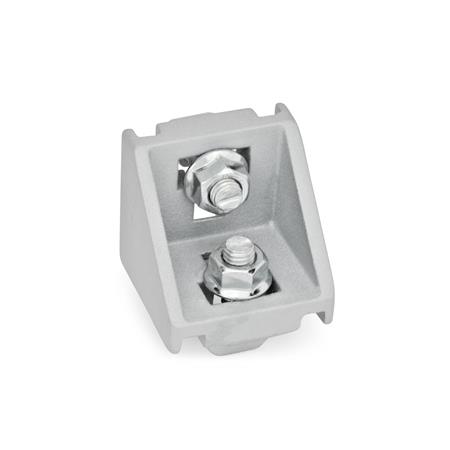

Type C - With aseembly set, without cover
Product Description
GN960 Angle piece for Profile Systems 30 / 40 / 45
To fix the angle pieces in place, insert the assembly sets into the profile slot through the opening. When tightened, the nut or screw will be cross-positioned and so anchored in the slot.
For crossing profiles or when using the angle piece with elements without slot, the superfluous guide steps can be simply broken out.
After assembly, the cover caps are snapped into place via four lugs. They lend the angle piece an attractive appearance and protect against dirt.
Even after repeated use, the cover caps will remain firmly in place inside the angle pieces thanks to the elastic snap-type lugs.
Specification
Aluminium die casting. Matt blasted MT. Plastic coated, black, RAL 9005, textured finish SW. Plastic coated, silver, RAL 9006, textured finish SR.
T-Slot bolt GN505.4 with hexagon flange nut - Steel ST, zinc plated, blue passivated.
T-nut GN505 with socket head cap screw - Steel ST, zinc plated, blue passivated.
Cover - Plastic (Polyamide PA), black, matt.
