GN923.40 Disc Handwheel, for Linear Actuators

CloseNextPrevious



CloseNextPrevious

GN923.40: Disc Handwheel



CAD Viewer Technical Data

Series Selector

Options

Bore Code K - With keyway

Type R - With revolving handle

CAD Viewer Technical Data

Product Description

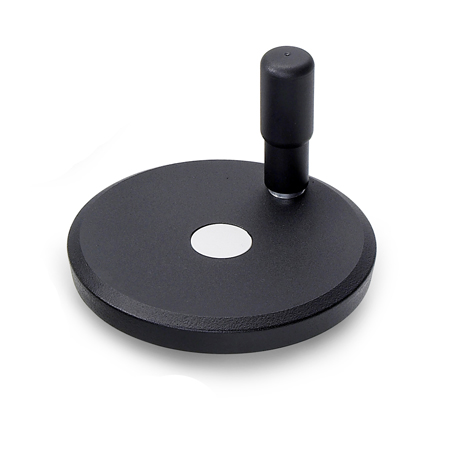

GN923.40 Disc Handwheel, for Linear Actuators

These disc handwheels GN 923.40, are strong & robust, and can be used in various tooling operations including for linear actuators. With keyway and revolving handle.

Specification

Aluminum pressure die casting - Plastic coated. Black SW RAL 9005, textured finish.

Hub - Machined

Rim - Turned, concentric runout and axial runout deviation of the rim < 0,4

Revolving handles GN798.2 - Plastic, technoplymer, black, matt.
