Please select desired options to reveal part number, price and availability
Options
Type A - 2x2 threaded blind bores

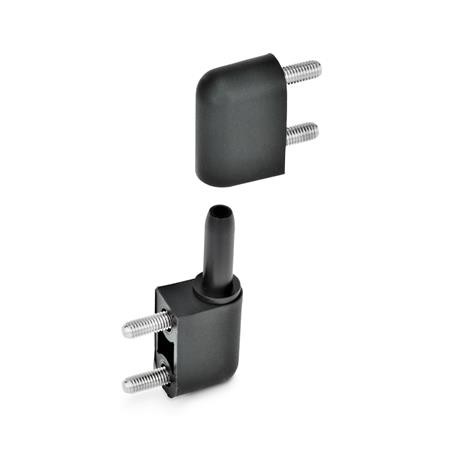

Type B - 2x2 threaded studs

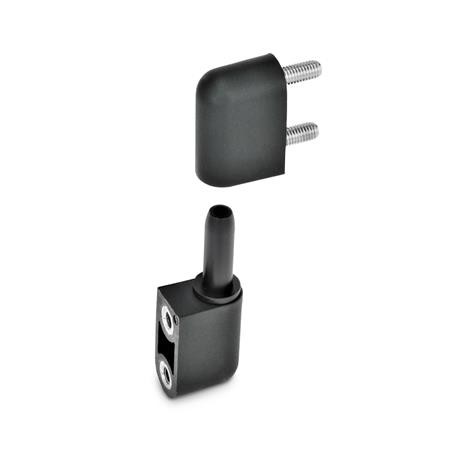

Type C - 2x threaded studs (at the eccentric pin) 2x threaded blind bores

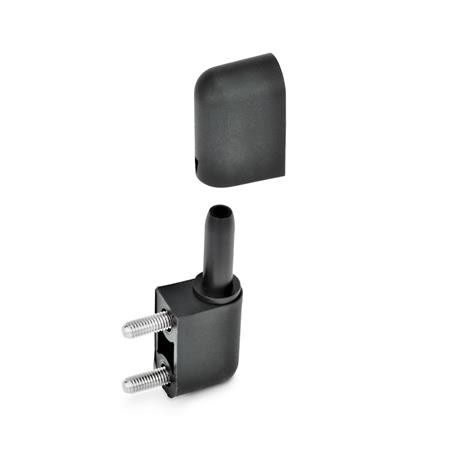

Type D - 2x threaded blind bores (at the eccentric pin) / 2x threaded studs
Product Description
GN160 Hinges, Detachable, with Eccentric Pin, Plastic
On hinges GN 160 the two pin halves which form the fulcrum are offset from each other by 0.5 mm and therefore, eccentric. Hence the position of the door can be altered or re-adjusted in relation to the frame.
Specification
Plastic (Polyamide PA) - Glass fibre reinforced, black, matte finish, temperature resistant up to 80 °C
Pin - Plastic (Polyacetal POM)
Threaded bushings - Brass nickel plated
Threaded studs - Steel nickel plated
