GN237.3 Heavy Duty Hinges, Stainless Steel, Horizontally Elongated

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type - with bores for countersunk screws

Type - with bores for countersunk screws and centering attachments

CAD Viewer Technical Data

Product Description

GN297.3 Heavy Duty Hinges

Horizontally elongated, stainless steel, heavy duty hinges GN 237.3 are designed for use under tough conditions. Attachment points with a wider spacing and more installation holes allow a more effective introduction of force into the mounting surface. The hinge pins are integral and allow the hinges to be used in environments with strong vibrations and shocks.

The selected materials allow the hinges to be used in aggressive environments. Wear is minimized by the effective friction pairing of the hinge components and lubrication.

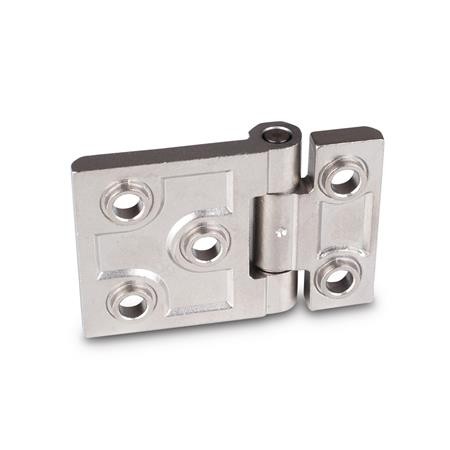

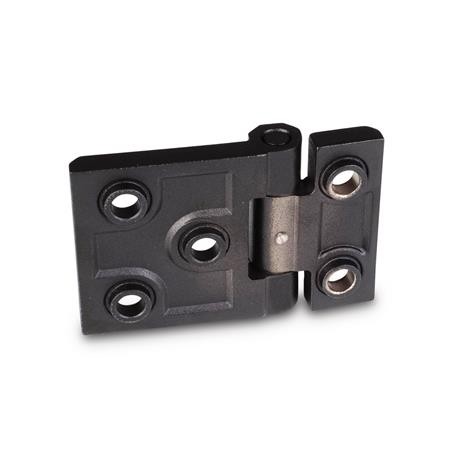

The type B hinge has centering attachments that prevent lateral slippage under high loads and protect the mounting screws from impermissible transverse force.

Specification

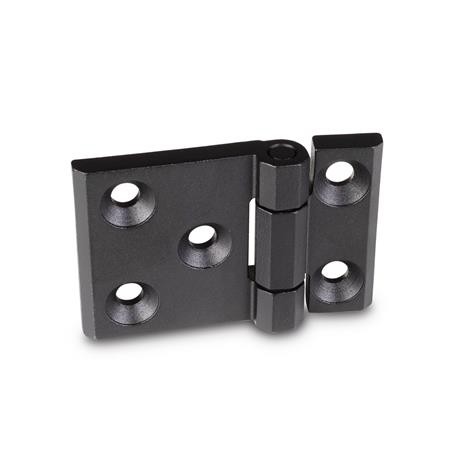

Stainless Steel NI - German Material No. 1.440, matt shot-blasted GS. Plastic coated, black, RAL 9005, textured finish  SW

Hinge pin - Stainless Steel, German Material No 1.4542, tempered, lubricated with special grease.

Shim washers - Stainless Steel AISI 301, tempered,lubricated with special grease.
