GN449.1 Spring-Bolt Door Latches Plastic, Adjustable, with Cover
CloseNextPreviousGN449.1 Spring Bolt Door Latches
Type A Without Interlock, Without Finger Handle, SW Black
CloseNextPreviousGN449.1 Spring Bolt Door Latches

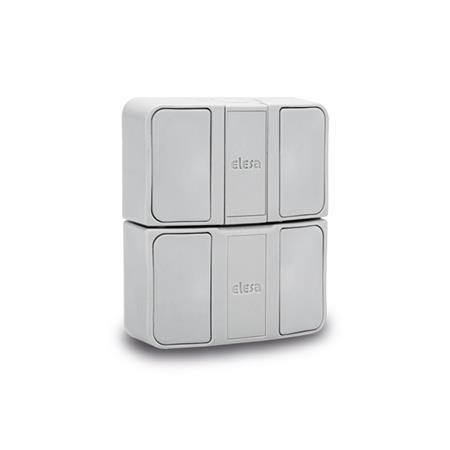

Type A Without Interlock, Without Finger Handle, LG Grey
CloseNextPreviousGN449.1 Spring Bolt Door Latches

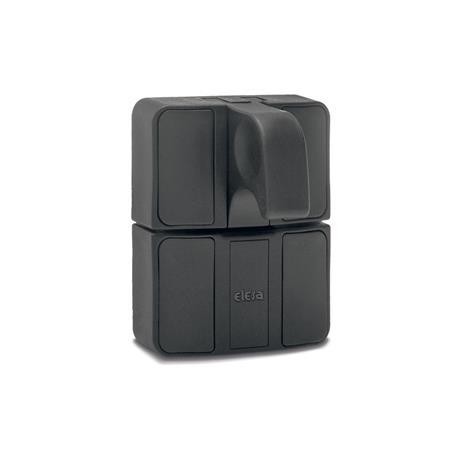

Type B With Interlock, With Finger Handle, SW Black
CloseNextPreviousGN449.1 Spring Bolt Door Latches

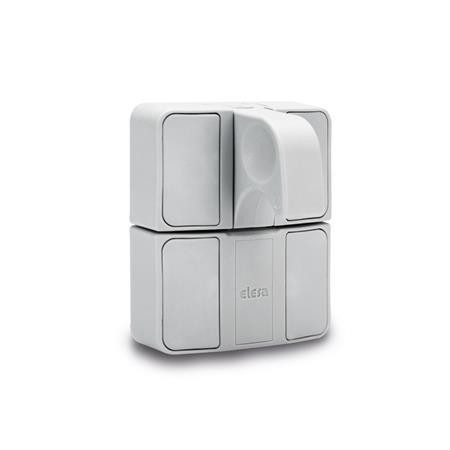

Type B With Interlock, With Finger Handle, LG Grey
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type A - Snap lock, without interlock, without finger handles
Type B - Snap lock, without interlock, with finger handles
Product Description
GN449.1 Spring-Bolt Door Latches Plastic, Adjustable, with Cover
Spring-bolt door latches GN 449.1 can be mounted on shaped parts and make it easier to hold swinging doors.
The slots allow the spring-bolt door catches to be mounted on shaped parts with different cross-sections. In addition, the distance of 1 mm between the individual elements, which is needed for the latches to work, can be easily adjusted.
In the design with finger handle (Type B), the door is held shut with form-locking effect. The door is opened by unlocking the finger handle. This handle often saves using the extra operating handle at the door.
Spring-bolt door latches GN449.1 will be delivered unmounted.
Specification
- Plastic, (polyamide PA), glass fibre reinforced, temperature resitant to 80º C, matte finish
- Cover - plastic (polybutylene terephthalate - PBT)
- Bearing plate - Steel, blackenend.
- Pressure spring - stainless steel
CAD Viewer
Technical Data
