GN515 Latch, Zinc Die Cast, with Extended Housing, with Operating Elements
CloseNextPreviousGN515 Latches, Extended Housing,
Type: HG Operation with Plastic Lever
CloseNextPreviousGN515 Latches, Extended Housing,
Type: RG Operation with Knurled Knob
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type SG - with star knob
Type SK - with wing knob
Type ST - with T handle
Type RG - with knrled knob GN7336

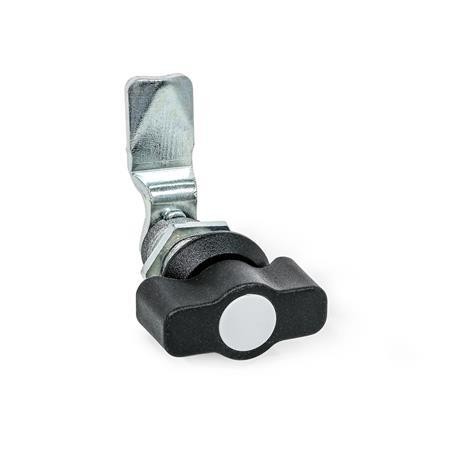

Type KG - with wing knob
Type HG - with lever
Product Description
GN515 Latch, Zinc Die Cast, with Extended Housing
Latches GN 515 are identical to standard latches GN115 except for the extended housing. They are operated with a rotation limited to 90°, which moves the latch arm into the locked position behind the frame. The bevels of the latch arm ease the closing of the door.
By installing latch arms with different bend profiles, the latch distance A can be varied from 16 to 92 mm depending on the housing height h1, while the extended housing is suitable for a door thickness s up to 50 mm.
Latches GN 515 are supplied with loosely enclosed latch arm.
Specification
- Lock housing - Zinc die casting ZD
- Housing collar - Powder coated, black, RAL 9005, textured finish, SW
- Operating elements - Plastic (Polyamide PA), black. matte finish.
- Cover cap (Type RG, KG, HG) - Plastic (Polyamide PA), light grey, matte finish
- All other parts - Steel plated, blue passivated
- Protection class IP 65
Accessory
- Protective Guide Plates GN120.2
- Internal Cabinet Handles GN120.3
