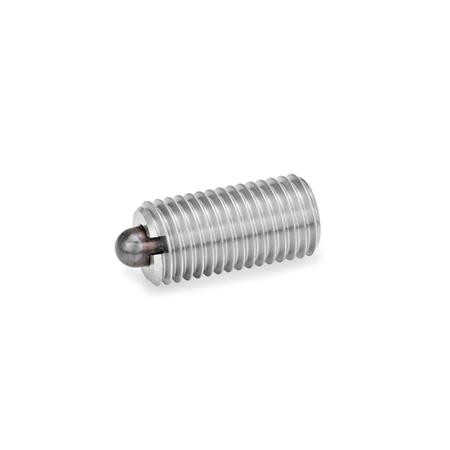

GN616 Spring Plunger, with Bolt, Stainless Steel, with Standard Spring Load





Type SN Stainless Steel bolt, with standard spring load

Type KN Plastic bolt, with standard spring load

Select Values to Buy:

Tech Spec:



GN616 Spring Plunger, with Bolt, Stainless Steel, with Standard Spring Load

Spring plungers GN616 are used as detents as well as for push-on and push-off applications and ejectors.

The slot on the plunger side is provided for blind hole applications. A special screw driver GN616.5 or GN611.5 is available.

Specification

Housing - Stainless Steel AISI 303

Type SN - Bolt Stainless Steel AISI 303

Bolt Type KN - Plastic, Technopolymer (Polyacetol POM), Temperature resistant 50°C

Spring - Stainless Steel German Material, No. 14568.

RoHS compliant

Select / Deselect Visible Columns
Close
Hided1 Type SNShow
Hided1 Type KNShow
HideTypeShow
Hided2Show
HidelShow
HideswShow
HidewShow
HideSpring load in N initialShow
HideSpring load in N endShow
HideMaterialShow
PartCoded1 Type SNd1 Type KNTyped2lswwSpring load in N initialSpring load in N endMaterialMass

GN616-M4-SNM4SN1.5151.31.54.516NI0.001
GN616-M4-KNM4KN1.5151.31.54.516NI0.001
GN616-M5-SNM5SN2.4181.52.3619NI0.002
GN616-M5-KNM5KN2.4181.52.3619NI0.001
GN616-M6-SNM6SN2.72022.5619NI0.003
GN616-M6-KNM6KN2.72022.5619NI0.003
GN616-M8-SNM8SN3.5222.531039NI0.006
GN616-M8-KNM8KN3.5222.531039NI0.005
GN616-M10-SNM10SN422331039NI0.009
GN616-M10-KNM10KN422331039NI0.009
GN616-M12-SNM12SN628441253NI0.016
GN616-M12-KNM12KN628441253NI0.016
GN616-M16-SNM16SN7.5325545100NI0.035
GN616-M16-KNM16KN7.5325545100NI0.032
GN616-M20-SNM20SN10406752125NI0.067
#10714.21~10716.33#
