GN164 Scale Ring, Matt Chrome Plated

CloseNextPrevious



CloseNextPrevious

GN164: Scale Ring - Type: MCRS -
Matt Chrome Plated with Scale 0...90



CloseNextPrevious

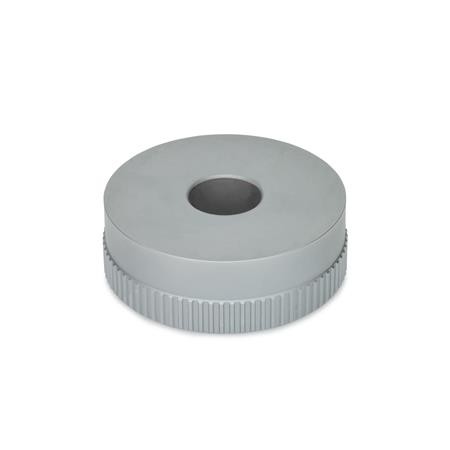

GN164: Scale Ring
Type: MCR - Matt Chrome Plated



CAD Viewer Technical Data

Series Selector

Options

Type MCR - matt chrome plated, no scale

Type MCRS - matt chrome plated scale 0 - 90, 100 graduations, scale scheme d1/100 A RA 0-10-20 - 90/10

Bore code - without friction ring

Bore code - with friction ring

CAD Viewer Technical Data

Product Details

GN164 Scale Ring, matt chrome plated

Scale rings GN 164 are matt chrome plated, which gives a good contrast to the scale markings. The scale and the arrow on the control knobs are indelibly marked and easily legible.

Available with or without a friction ring. This non-wearing friction ring ensures perfect engagement when re-aligning the spindle. In addition it allows the setting of the scale ring on a static shaft.

In addtion to the standard scale, they can be supplied with any type of custom graduation markings, of various designs.

See further details on Custom Graduations for designs and prices.

Please note:

An additional surcharge applies for custom graduation. If this is not chosen on the original order, this will be invoiced separately.

Specification

Steel, knurl milled, scale lug d1 fine turned.

Matt chrome plated without scale MCR.

Matt chrome plated with standard scale MCRS

Scale - engraved with laser precision, black

Clamp ring - rubber

Friction ring - Polyamide
