GN727 Control knob adjustable spindle GN 727

Standard Parts for Clamping & Operating & Machine Fixtures > Position Indicators, Indexing Mechanisms & Control Knobs > Control Knobs
< Previous Product

GN727 Control Knobs With Adjustable Spindle

images/300/GN727-Control-knobs-with-adjustable-spindle-Aluminum-Steel-sketch_H.png



Type A - Fixing hole parallel to the spindle axle.

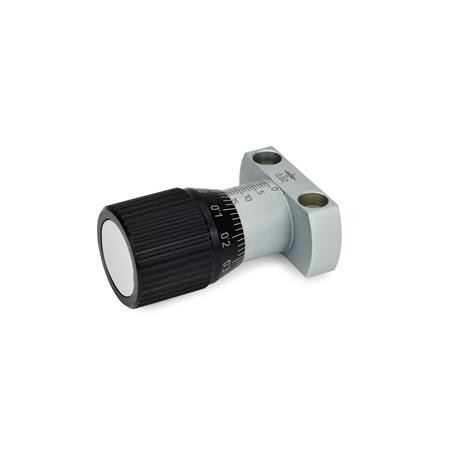

Type B - Fixing hole vertical to the spindle axle.

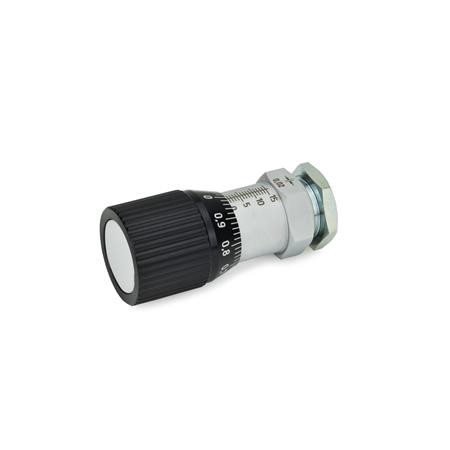

Type S1 - Mounting with hexagon head screw.

Coding SR with scale 0.1 - 0.9, 50 graduations ascending clockwise

Coding SL with scale 0.1 - 0.9, 50 graduations ascending anti-clockwise

Select Values to Buy:

Tech Spec:



GN727 Control Knobs With Adjustable Spindle.

These control knobs allow precise position adjustment with a positive stop. The spindle thread is without play or backlash.

The marking on the control knob is completely resistant to abrasion and easy to read, and a good contrast is achieved by the laser process.

The light grey cover shrouds the fixing components as well as the shaft end.

See further details on Custom Graduations for designs and prices.

Please note:

An additional surcharge applies for custom graduation. If this is not chosen on the original order, this will be invoiced separately.

Specification

Body - Steel, matt chrome plated.

Spindle - Steel, blank.

Control knob - Aluminum, anodized, black.

Scales engraved with laser precision.

Hexagon head screw - Steel, zinc plated, blue passivated.

Cover cap - Plastic, light grey.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1TypeCodingd2d3d4d5d6d7d8d9b1b2hk1k2l1l2l3l4l5A/FwMaterialMass

GN727-27-A-SR27ASRM6M12x16.4184.3381912.510204.328225419.537.50.512210ST0.103
GN727-27-A-SL27ASLM6M12x16.4184.3381912.510204.328225419.537.50.512210ST0.103
GN727-27-B-SR27BSRM6M12x16.4184.3381912.510204.328225419.537.50.512210ST0.103
GN727-27-B-SL27BSLM6M12x16.4184.3381912.510204.328225419.537.50.512210ST0.103
GN727-27-S1-SR27S1SRM6M12x16.4184.3381912.510204.328225419.537.50.512210ST0.113
GN727-27-S1-SL27S1SLM6M12x16.4184.3381912.510204.328225419.537.50.512210ST0.11
GN727-34-A-SR34ASRM8M16x18.5235.3502418.311254.236306723.545.50.512715ST0.21
GN727-34-A-SL34ASLM8M16x18.5235.3502418.311254.236306723.545.50.512715ST0.206
GN727-34-B-SR34BSRM8M16x18.5235.3502418.311254.236306723.545.50.512715ST0.206
GN727-34-B-SL34BSLM8M16x18.5235.3502418.311254.236306723.545.50.512715ST0.205
GN727-34-S1-SR34S1SRM8M16x18.5235.3502418.311254.236306723.545.50.512715ST0.182
GN727-34-S1-SL34S1SLM8M16x18.5235.3502418.311254.236306723.545.50.512715ST0.182
