Product Description
PR Pressure Regulators

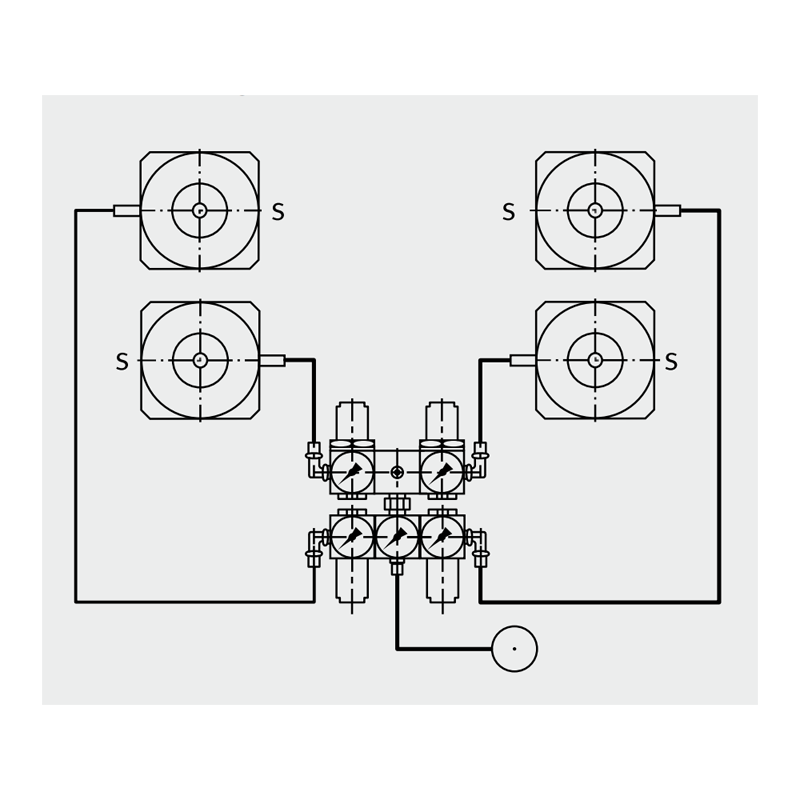

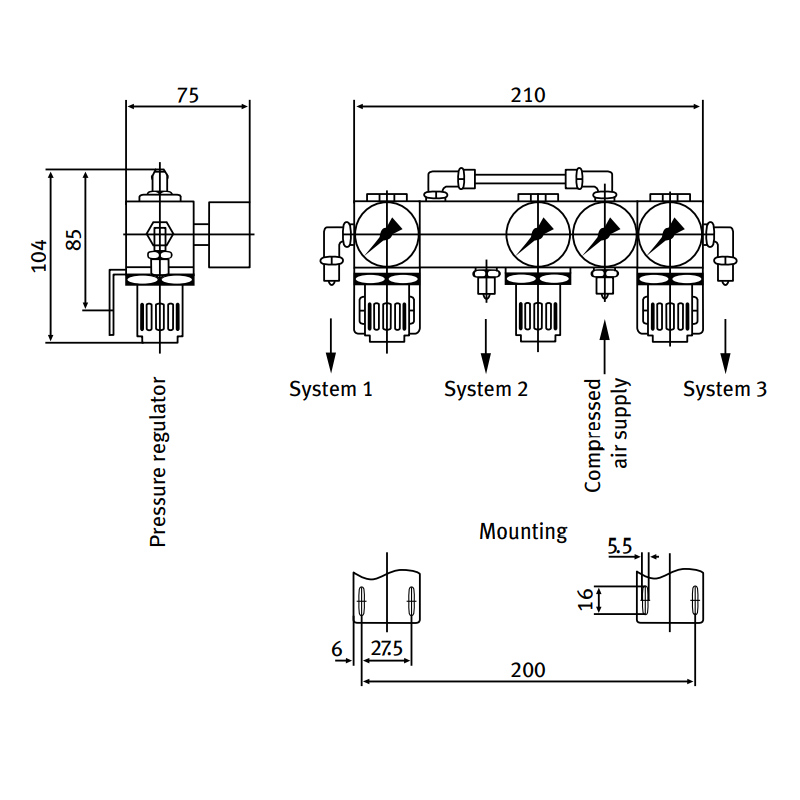

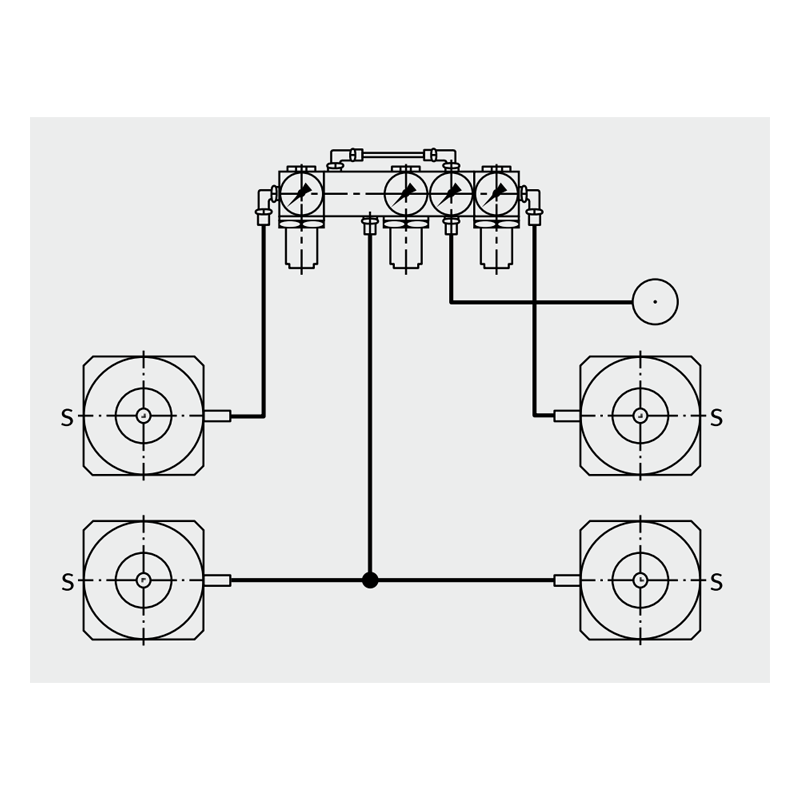

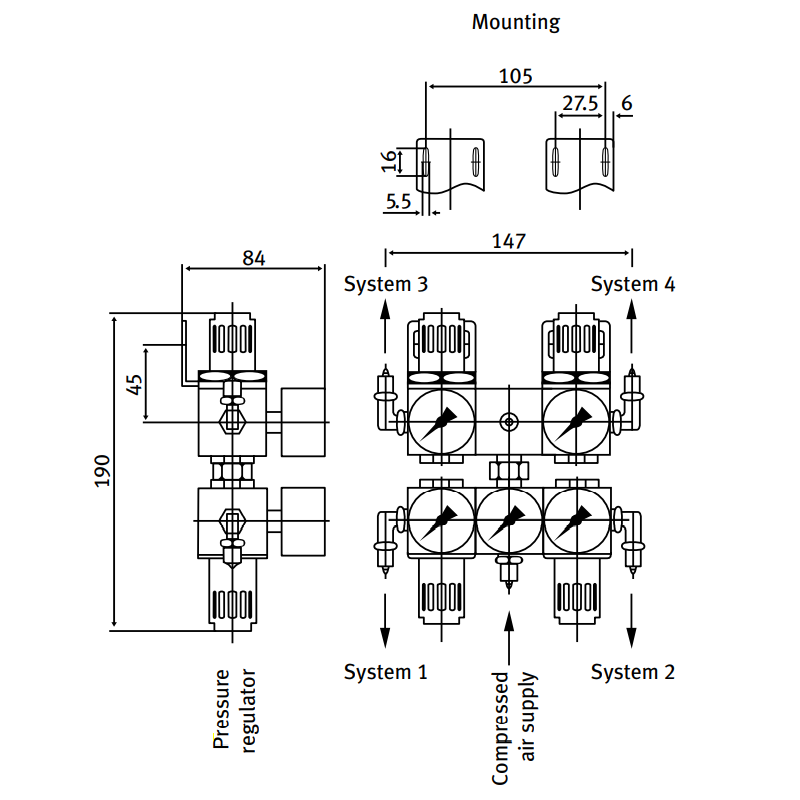

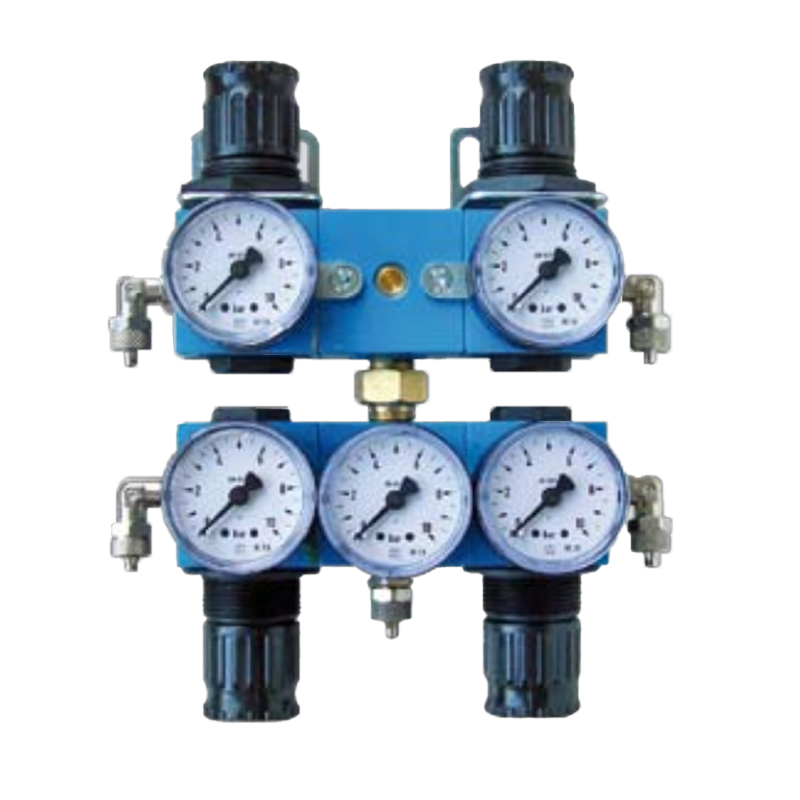

These PR pressure regulators come in two different types, PR-A3 and PR-A4. Three or four pressure regulators with gauges are used to adjust the pressure in each regulator circuit. An additional pressure gauge indicates the available network pressure
The pressure regulators PR-A3 and PR-A4 are used in combination with the pneumatic springs (e.g. SLM type) for setting the required pressure in each regulator circuit. Pressure losses through leakages are automatically compensated. PR's are for use at constant load distribution
By using the pressure regulators, the network pressure is reduced to such an extent that the connected pneumatic spring elements carry the applied load. Please observe the assembly instructions of pneumatic spring elements!
CAD Viewer
Technical Data
