GN705 Set Collar, Steel, Blackened, Solid, One Piece



Type A - grub screw with slot ISO 7434 (DIN553)

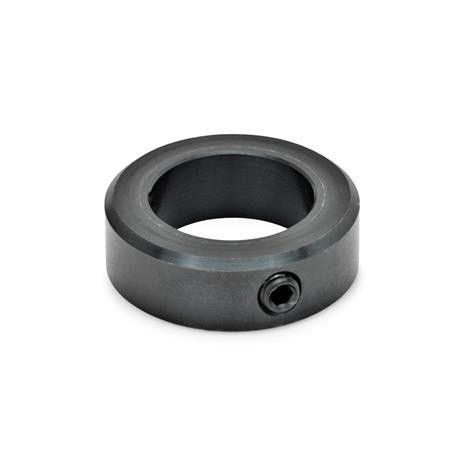

Type E - grub screw with internal hexagon (DIN914)

Select Values to Buy:

Tech Spec:



GN 705 Set Collar, Steel, Blackened, Solid, One Piece

These top quality set collars are ideal for locking rings onto shafts, as mechanical stops. A useful machining component, they are also commonly utilised for locating purposes. They have a simple, one piece design for easy installation.

Set collars GN705 essentially comply with the designs of DIN 705 which was re-issued in April 2007.

Specification

Steel, blackened

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2d3bTypeMass

GN705-5-AST510M3x46A0.003
GN705-5-EST510M3x46E0.003
GN705-6-AST612M4x58A0.006
GN705-6-EST612M4x58E0.006
GN705-7-AST712M4x58A0.005
GN705-7-EST712M4x58E0.005
GN705-8-AST816M4x68A0.01
GN705-8-EST816M4x68E0.009
GN705-9-AST918M5x810A0.014
GN705-9-EST918M5x810E0.016
GN705-10-AST1020M5x810A0.018
GN705-10-EST1020M5x810E0.018
GN705-11-AST1120M5x810A0.018
GN705-11-EST1120M5x810E0.018
GN705-12-AST1222M6x812A0.026
GN705-12-EST1222M6x812E0.026
GN705-13-AST1322M6x812A0.026
GN705-13-EST1322M6x812E0.022
GN705-14-AST1425M6x812A0.032
GN705-14-EST1425M6x812E0.032
GN705-15-AST1525M6x812A0.03
GN705-15-EST1525M6x812E0.03
GN705-16-AST1628M6x812A0.038
GN705-16-EST1628M6x812E0.043
GN705-18-AST1832M6x814A0.06
GN705-18-EST1832M6x814E0.06
GN705-20-AST2032M6x814A0.052
GN705-20-EST2032M6x814E0.053
GN705-22-AST2236M6x1014A0.069
GN705-22-EST2236M6x1014E0.069
GN705-24-AST2440M8x1216A0.1
GN705-24-EST2440M8x1216E0.1
GN705-25-AST2540M8x1016A0.093
GN705-25-EST2540M8x1016E0.088
GN705-26-AST2640M8x1016A0.091
GN705-26-EST2640M8x1016E0.091
GN705-28-AST2845M8x1216A0.12
GN705-28-EST2845M8x1216E0.122
GN705-30-AST3045M8x1016A0.106
GN705-30-EST3045M8x1016E0.111
GN705-32-AST3250M8x1216A0.142
GN705-32-EST3250M8x1216E0.142
GN705-34-AST3450M8x1216A0.132
GN705-34-EST3450M8x1216E0.132
GN705-35-AST3556M8x1216A0.187
GN705-35-EST3556M8x1216E0.17
GN705-36-AST3656M8x1216A0.18
GN705-36-EST3656M8x1216E0.18
GN705-38-AST3856M8x1216A0.166
GN705-38-EST3856M8x1216E0.166
GN705-40-AST4063M10x1618A0.261
GN705-40-EST4063M10x1618E0.26
GN705-42-AST4263M10x1618A0.235
GN705-42-EST4263M10x1618E0.244
GN705-45-AST4570M10x1618A0.317
GN705-45-EST4570M10x1618E0.317
GN705-48-AST4870M10x1618A0.287
GN705-48-EST4870M10x1618E0.287
GN705-50-AST5080M10x1618A0.429
GN705-50-EST5080M10x1618E0.429
GN705-52-AST5280M10x1618A0.408
GN705-52-EST5280M10x1618E0.408
GN705-55-AST5580M10x1618A0.373
GN705-55-EST5580M10x1618E0.373
GN705-60-AST6090M10x1620A0.552
GN705-60-EST6090M10x1620E0.5
GN705-65-AST65100M10x2020A0.687
GN705-65-EST65100M10x2020E0.687
GN705-70-AST70100M10x2020A0.607
GN705-70-EST70100M10x2020E0.607
GN705-75-AST75110M12x2022A0.858
GN705-75-EST75110M12x2022E0.858
GN705-80-AST80110M12x2022A0.768
GN705-80-EST80110M12x2022E0.768
