GN751.1 Fork Joint, Steel, with Rotating Shaft

images/300/GN751.1_Fork_joint_drawing_H.png

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Type A - without pin

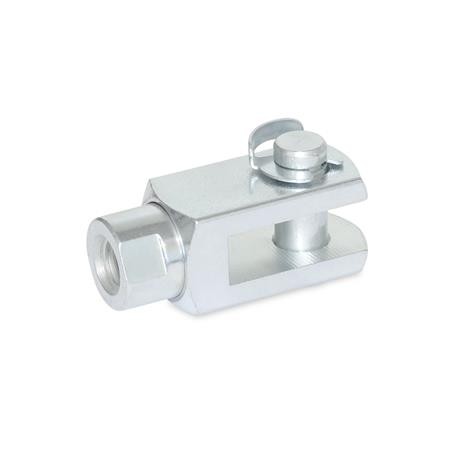

Type KL - Pin with KL shaft safety

Type SL - Pin with SL shaft safety

CAD Viewer Technical Data

Product Descripion

GN751.1 Fork Joint, Steel, with Rotating Shaft

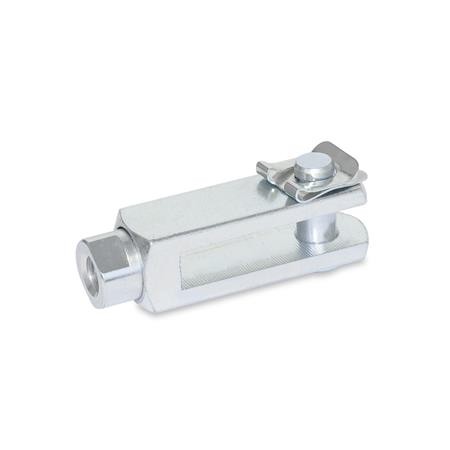

Fork joints GN751.1 are similar to the fork head DIN71752 (Type A), but, unlike the DIN element, they have a rotating shaft and an additional bolt with axial shaft lock (Type KL and SL) which can be mounted and dismantled without tools.

The rotating shaft allows non-dynamic radial movements to be compensated, which may occur, for example, when using cable winches. Also, there is no need for the alignment of joint heads during assembly.

Specification

Steel - Tensile strength 500 N/mm2, zinc plated, blue passivated

Shaft safetys - Spring steel, hardened and tempered, zinc plated, blue passivated
