Press Tool Standard Parts > Demountable Pillar & Bush Blocks
Next Product >

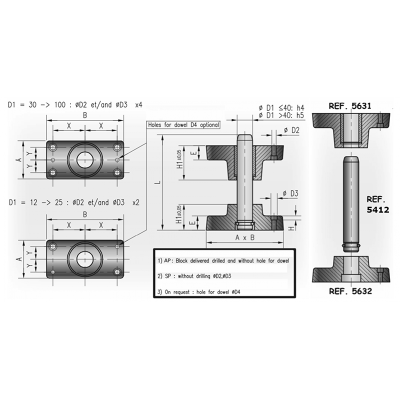

5632 Base Demountable Block, Guide Pillars 5412

  images/300/5632_Drawing_W.jpg

Type AP - Block drilled, without dowel hole

Type SP - Block undrilled

Type APD - Block drilled, with dowel hole ØD4 (on request)

Select Values to Buy:

Tech Spec:



5632 Base Demountable Block for Guide Pillars 5412

Saving time and money by allowing the pillar and bush to be lifted from the tooling in one piece these demountable blocks for guide pillars make press tooling quicker and more efficient. Compatible with and commonly used with guide pillar 5412 and also compatible with guide pillar 5725.

Manufactured from top quality steel, for it's hardwearing and long lasting properties, this is a cost effective choice.

Specification

Steel

Select / Deselect Visible Columns
PartCodeD1H1D2D3D4ABEhXYAvailable
for use
with
Mass

5632-012-020-AP12206.6126325612.57218.55631,5661,56710.19
5632-012-020-SP12206.6126325612.57218.55631,5661,56710.19
5632-016-025-AP16256.6126407116736.512.55631,5661,56710.345
5632-016-025-SP16256.6126407116736.512.55631,5661,56710.345
5632-020-032-AP2032916845801893012.55631,5661,5671,5681,56820.52
5632-020-032-SP2032916845801893012.55631,5661,5671,5681,56820.52
5632-025-040-AP25409168569018935.517.755631,5661,5671,5681,56820.789
5632-025-040-SP25409168569018935.517.755631,5661,5671,5681,56820.789
5632-030-050-AP3050916107111220945255631,5661,5671,5681,56821.62
5632-030-050-SP3050916107111220945255631,5661,5671,5681,56821.62
5632-032-050-AP3250916107111220945255631,5661,5671,5681,56821.475
5632-032-050-SP3250916107111220945255631,5661,5671,5681,56821.555
5632-040-063-AP406311181285132251153305631,5661,5671,5681,56822.575
5632-040-063-SP406311181285132251153305631,5661,5671,5681,56822.725
5632-050-080-AP5080142216112160281366405631,5661,5671,5681,56825.755
5632-050-080-SP5080142216112160281366405631,5661,5671,5681,56825.631
5632-063-100-AP63100182816132200401780455631,5661,5681,568210.5
5632-063-100-SP63100182816132200401780455631,5661,5681,568210.5
5632-080-125-SP801252236201602504521100565631,5681,568218.88
5632-080-125-AP801252236201602504521100565631,5681,568217.7
